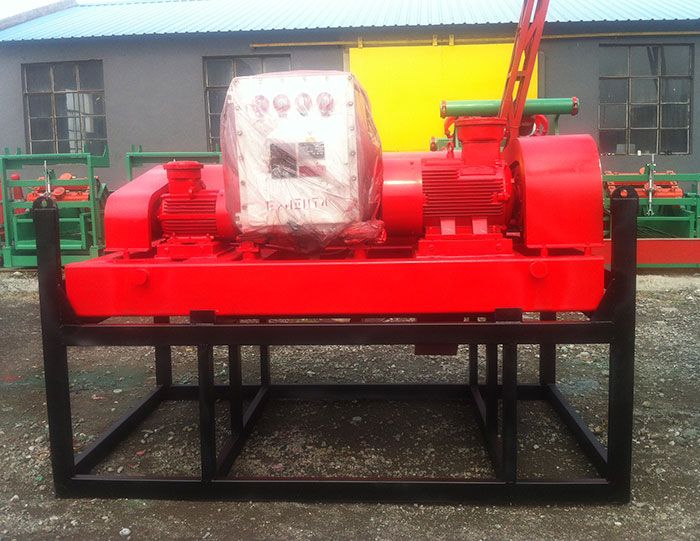

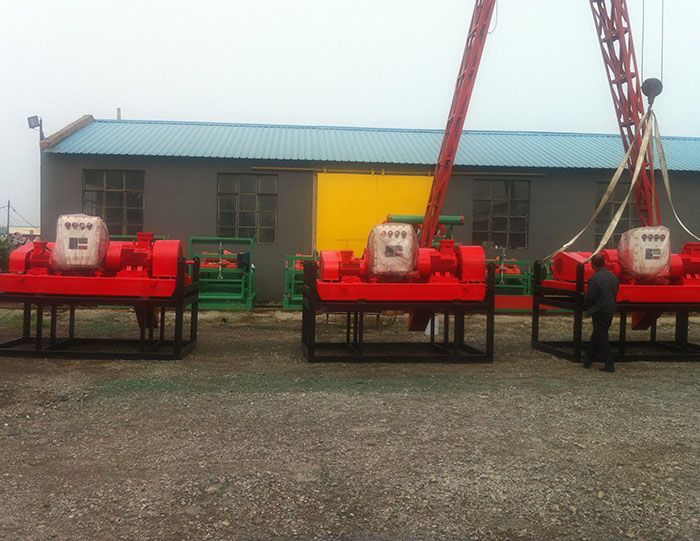

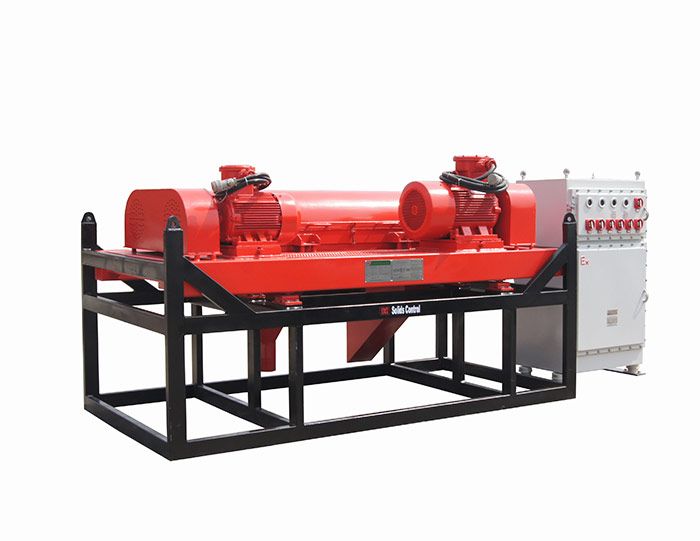

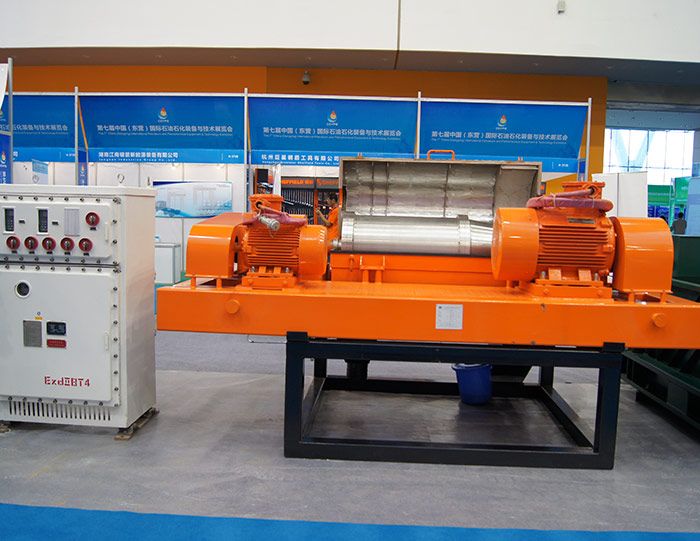

Decanter Centrifuge

  • Drilling fluid centrifuge is used for recovering barites, removing small solid particles, reducing solids content in mud, thus ensure drilling fluid performance.
Share

Drilling fluid centrifuge is used for recovering barites, removing small solid particles, reducing solids content in mud, thus ensure drilling fluid performance.

1 Shanghai centrifuge research institute particles in the development of our products.

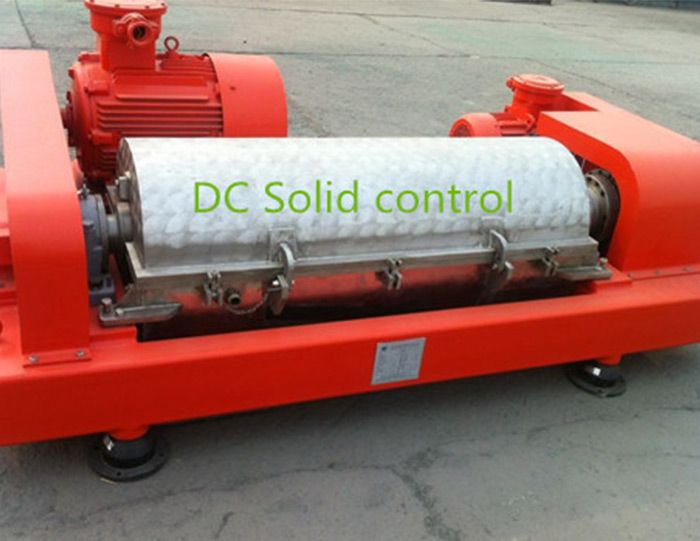

2 Bowl, screw propeller and collecting box all adopt stainless steel 304 material.

3 Impeller of screw propeller welding hard alloy.

4 Solids discharging port adopts replaceable hard alloy and inlay ceramic protecting materials.

5 Bearing all adopt imported Sweden SKF.

6 Electrical components select Siemens or Schneider brands.

7 Adopt planetary differential.

8 Feeding pumps adopt DC Screw pumps.


Decanter centrifuge parameter:


LW450x850
Middle-speed decanter centrifuge
LW600x1019D
Middle-speed decanter centrifuge
LW700x1200D
Middle-speed decanter centrifuge
Drum diameter450mmDrum diameter600mmDrum diameter700mm
Drum Length 850mmDrum Length 1019mmDrum Length 1200mm
Drum Speed/rpm1480rpmDrum Speed/rpm1500rpmDrum Speed/rpm1480rpm
Main Motor Power
22kw-IV classMain Motor Power
45kw-IV classMain Motor Power
55kw-IV class
Back Motor power5.5kw-IV classBack Motor power7.5kw-IV classBack Motor power22kw-IV class
Max treating capacity 40m3/hMax treating capacity 60m3/hMax treating capacity 90m3/h
Min Separation point 5-7umMin Separation point 3-7umMin Separation point 5-7um
Separation factor548GSeparation factor750GSeparation factor852G
Dimension 2350x1480x1550mmDimension 2900x1600x1950mmDimension 3100X1700X1980
Weight 3000kgWeight 3650kgWeight 4300KG



LW450BSx1250D
High-speed variable frequency
decanter centrifuge
LW450BPx1250
High-speed variable frequency decanter centrifuge
GLW600BPx1200D
High-speed variable frequency
decanter centrifuge
Drum diameter450mmDrum diameter450mmDrum diameter600mm
Drum Length 1250mmDrum Length 1250mmDrum Length 1500mm
Drum Speed/rpm2000-2600rpmDrum Speed/rpm0-2800rpmDrum Speed/rpm0-2600rpm
Main Motor Power
45kw-IV classMain Motor Power
45kw-IV classMain Motor Power
55kw-IV class
Back Motor power11kw-IV classBack Motor power11kw-IV classBack Motor power11kw-IV class
Max treating capacity 60m3/hMax treating capacity 60m3/hMax treating capacity 90m3/h
Min Separation point 3-7umMin Separation point 2-5umMin Separation point 2-5um
Separation factor1690GSeparation factor1960GSeparation factor2253G
Dimension 3100x1620x1890mmDimension 2350x1480x1710mmDimension 3200X1600X1750
Weight 3500kgWeight 4000kgWeight 4500KG



LW450x1000D
Middle-speed decanter centrifuge
LW355x1250D
High-speed decanter centrifuge
LW455x1250D
High-speed decanter centrifuge
Drum diameter450mmDrum diameter355mmDrum diameter455mm
Drum Length 1000mmDrum Length 1250mmDrum Length 1250mm
Drum Speed/rpm2000rpmDrum Speed/rpm2600rpmDrum Speed/rpm2800rpm
Main Motor Power
30kw-IV classMain Motor Power
37kw-IV classMain Motor Power
37kw-IV class
Back Motor power7.5kw-IV classBack Motor power11kw-IV classBack Motor power11kw-IV class
Max treating capacity 50m3/hMax treating capacity 50m3/hMax treating capacity 50m3/h
Min Separation point 2-5umMin Separation point 2-5umMin Separation point 2-5um
Separation factor1000GSeparation factor1333GSeparation factor1982G
Dimension 2450x1600x1650mmDimension 2900x1500x1650mmDimension 2900X1500X1650
Weight 3000kgWeight 2950kgWeight 2950KG
