Mud Agitator

  • DC mud agitator is used for the mixing and agitation of drilling fluid, preventing the settlement of solid phase particles in the tank recycling system.
Share

DC mud agitator is used for the mixing and agitation of drilling fluid, preventing the settlement of solid phase particles in the tank recycling system.

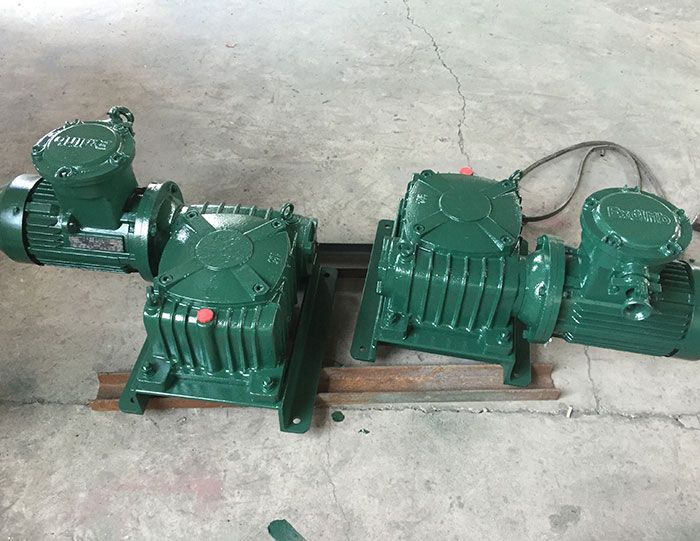

(1) Speed reducer combined with explosion-proof motor , which is easy maintenance and suitable for using in wild harsh working conditions.

(2) Customers can choose single layer or double layers impellers according to site conditions.Agitator shaft centering guide can be added according to the increase of tank depth.

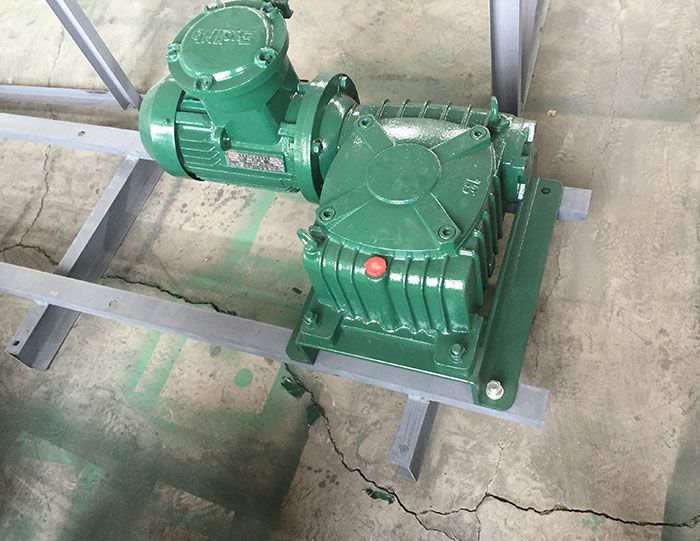

(3) The motor is placed horizontally , convenient for installing ,adjusting and replacing.

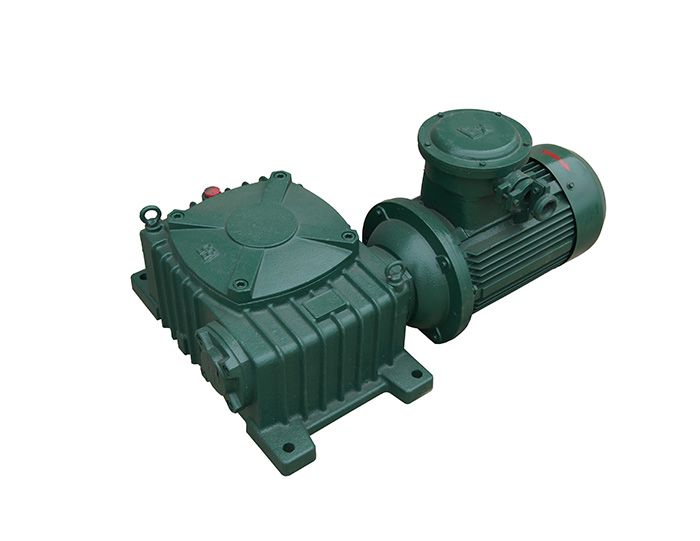

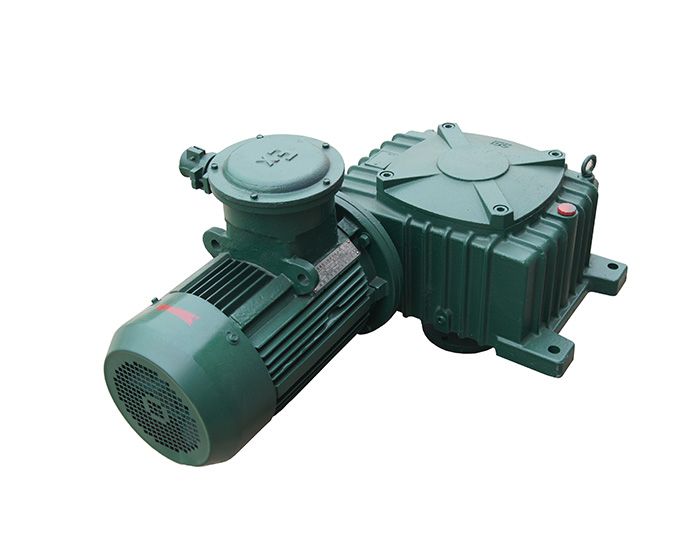

(4) Adopt worm wheel and worm gear reducer drive , which have the advantages of large transmitted torque,smooth operation, reliable performance,etc.

(5) Optional ATEX , IEC and marine explosion-proof certified motors according to customers'requirements.


Mud Agitator Parameters

ModelDCJBQ5.5DCJBQ7.5DCJBQ11DCJBQ15
Motor Power5.5kW7.5kW11kW15kW
Impeller Speed60rpm(50HZ)/72rpm(60HZ)
Shaft Length1500mm or According to tank internal height
Single Impeller Dia.850mm950mm1050mm1100mm
Double Impeller  Dia.rN/A上:800mm下:800mm上:850mm下:850mm上:900mm下:900mm
Electric Specs380V/50HZ or 460V/60 or  Customized
EX StandardEx dⅡBT4
Motor and reducerDimension910×600×560mm1080×650×630mm1250×720×690mm
Weight252kg255 kg340 kg430 kg
Single ImpellerDimension850×850×1500mm950×950×1500mm1050×1050×1500mm1100×1100×1500mm
Weight45 kg50 kg55 kg60 kg
Double  ImpellerDimensionN/A800×800×1500850×850×1500900×900×1500
Weight65 kg75 kg85 kg
Remark1、Righting set provided if impeller shaft length is above 1800mm.
