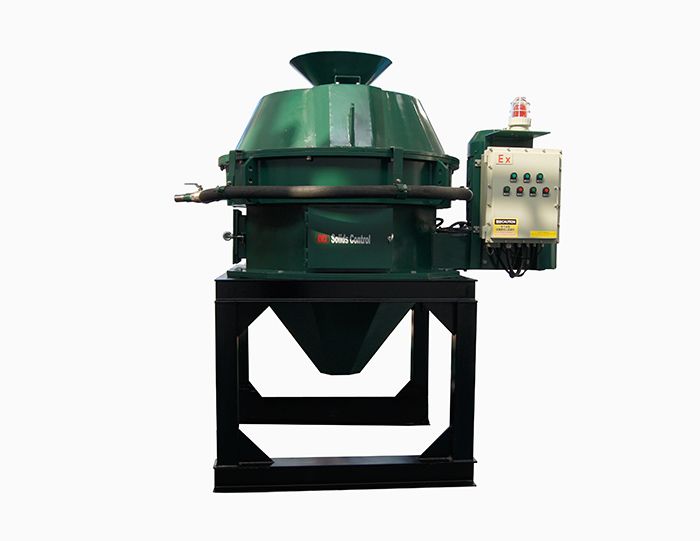

Vertical Cutting Dryer

  • DCTLL vertical drilling cutting dryer is a kind of separation equipment which utilizes mechanical rotary produce centrifugal force to realizesolid and liquid separation.
Share

DCTLL vertical drilling cutting dryer is a kind of separation equipment which utilizes mechanical rotary produce centrifugal force to realizesolid and liquid separation. The advantages of the equipment are adaptable, better treating efficiency, stable working, long service life and can effective recycling the drilling fluid in drilling cuttings.

It is the preferred equipment to dry drilling cuttings, recycle drilling fluid and especially recycle oil base drilling fluid.


Vertical drilling cutting dryer Parameters

ModelDCTLL-A550DCTLL-A915
Treating capacity20t/h30-50t/h
Screen opening0.25-0.5mm0.25-0.5mm
Screen basket ID550mm915mm
Rotary speed890rpm910rpm
Motor power22kW55kW
Lubrication motor power0.55kW0.55kW
Vltage380V/50HZ or 460V/60HZ or Customized
EX standardExdⅡBT4
Separation factor350G424G
Drilling cutting fluid content3%~8%3%~8%
Dimension1600×1600×2600mm3040×2150×2600mm
Weight3000kg6000kg
