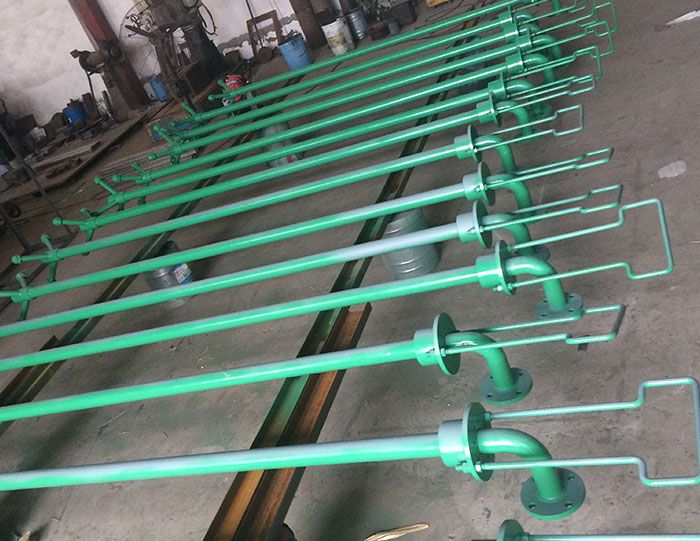

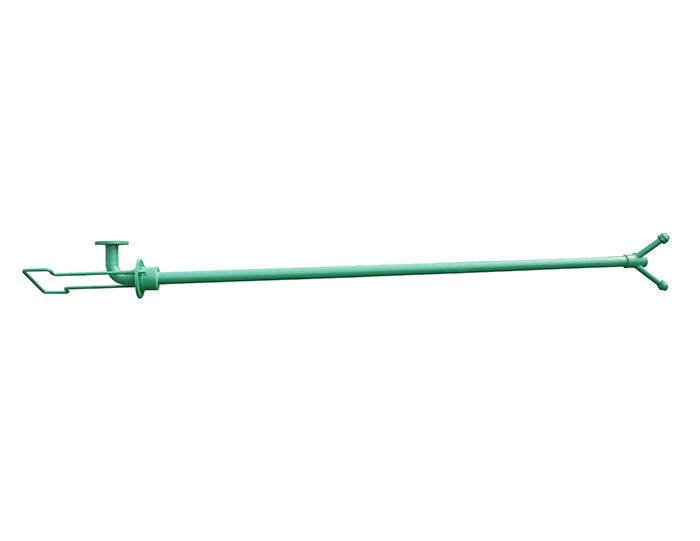

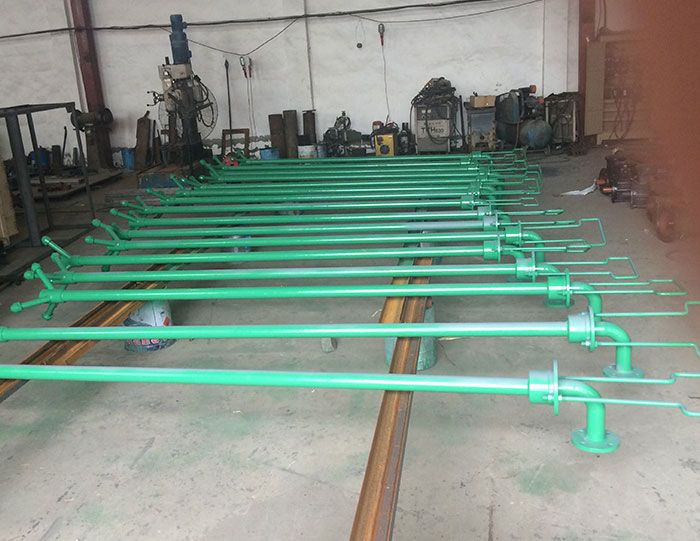

Mud Gun

  • Mud gun is also called drilling fluid gun which is solid control equipment produced by DC Solid control. It is usually used together with a mud agitator located at the top of the drilling fluid circulating tank. It is mainly used in the tank corner to prevent solid precipitation or wash the bottom of the tank.
Share

Mud Gun is also called drilling fluid gun which is solid control equipment produced by DC Solid control.

A mud gun is designed for use in a solids control system of a drilling rig. It is a tool which is mainly used for mixing drilling mud in the circulatory system and to prevent the mud from precipitating. The structure of equipment is simple offering flexible operation and easy use.  A mud gun is commonly used to guard against precipitates in a solids control system.

Mud Gun is divided into low pressure, medium pressure and high pressure. It is usually used together with a mud agitator located at the top of the drilling fluid circulating tank. It is mainly used in the tank corner to prevent solid precipitation or wash the bottom of the tank; it can also transport the mud between the tank and tanks. Besides, mud guns can be supplied by centrifugal pump or mud pump.

Mud Guns produced by our company have the advantages of good spray effect ,large clean area,simple structure,flexible operation and easy to use.


Features of DC Mud Gun

High quality national standard steel.

Discharge nozzles can be polyurethane and tungsten carbide alloy material.

Flexible on configuration of size and pressure rates.

Simple design and easy to operate.

High quality painting job per international standard.


How To Choose a Mud Gun?

Confirm do you need mud gun in which part or to achieve what function?

Make certain about the pressure we need during operation.

The mud tank or mud pit size to confirm proper length.

Nozzle numbers your prefer.

Rotation angle demand.

If any further customization on mud gun.


Mud Gun Parameters

ModelDCNJQ50DCNJQ80
Diameter50mm(2")80mm(3")
Work Pressure1.0Mpa~3.2Mpa
Nozzle Number3
Rotation Angle120°
length1500mm or customized
Dimension1900×460×360mm1900×460×360mm
weight45kg50kg
