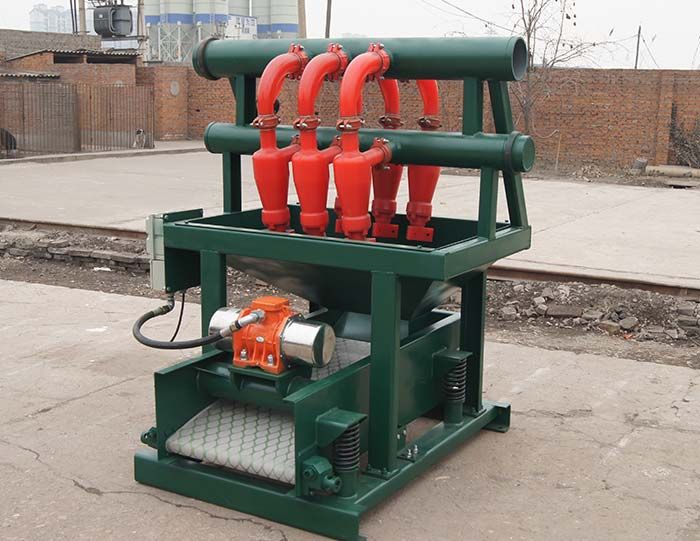

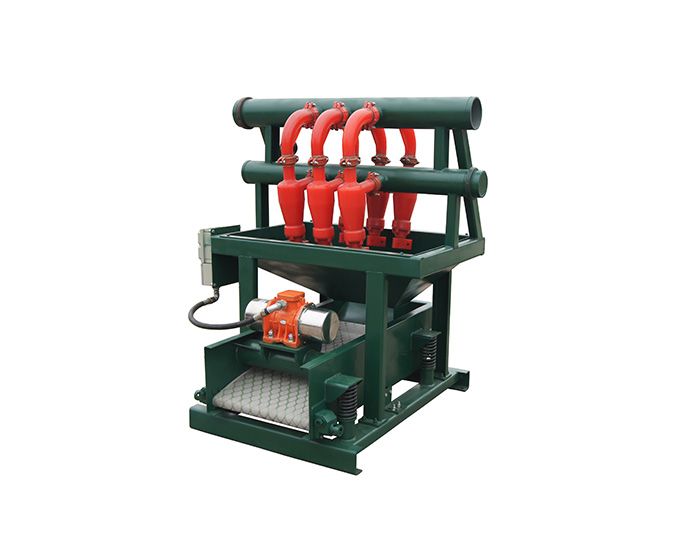

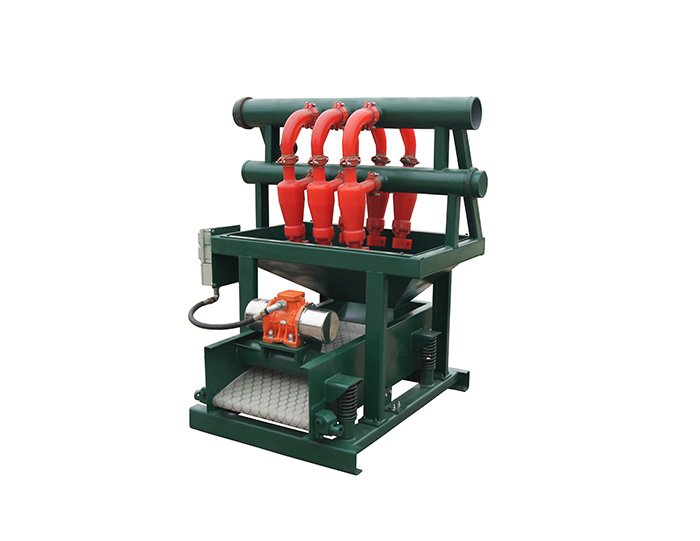

Hydrocyclone Desilter

  • Desilter is the third class solid control equipment in solid control system,it is used to separate the solid phase particles whose diameter is 15~44μm.
Share

A desilter is a type of mud recycling equipment that is what smaller diameter hydrocyclones are commonly called, and it's the step in solids removal before processing from desanding cones. Designers can handle lower flow rates at a cutpoint of 15-44µm (micron ). The underflow will be recirculated over a shaker to dry and remove solids while passing the liquid portion through the shaker to be processed again.

Advantages of DC Hydrocyclone Desilter

Desilter is the third class solid control equipment in solid control system,it is used to separate the solid phase particles whose diameter is 15~44μm.

(1)Select Special wear-resistant polyurethane material hydrocyclones.

(2)Symmetrical feeding design can make the liquid distribution to be more reasonable and stable.

(3)Underflow shaker equips DC mud shale shaker.

(4)Different specifications and quantities of hydrocyclones can be matched according to the handling capacity that customer required.


Desilter Parameters

ModelDCCNQ100×6DCCNQ100×8DCCNQ100×10DCCNQ100×12DCCNQ100×16
Treating Capacity90m³/h396GPM120m³/h528GPM180m³/h792GPM240m³/h1056GPM300m³/h1320GPM
Separation Size15~44μm
Cone Size4"(100)
Cone Number68101216
Pressure0.25~0.40Mpa
Matching PumpDCSB5×4-12-22kWDCSB6×5-12-30kWDCSB6×5-13-45kWDCSB8×6-13-55kWDCSB8×6-13-55kW
Electric Specs380V/50HZ or 460V/60HZ or Customized
EX standardExdⅡBt4
Inlet DiameterDN100DN150
Outlet DiameterDN125DN200
Matching ShakerScreen Specification600×1600mm,120-300mesh
Screen TypeSoft Hookstrip
Motor Power0.4kW
Dimension1480×1200×1740mm1480×1750×1780mm
Weight743kg755kg768kg780kg810kg
Remark1.4" Cones =10~20m3/h2.The motor power of centrifugal pump choosed is according to drilling mud specific gravity 1.2g/cm3
