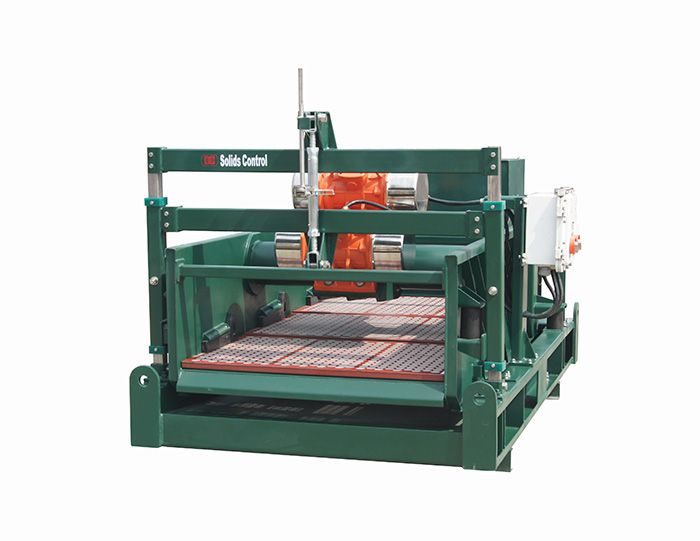

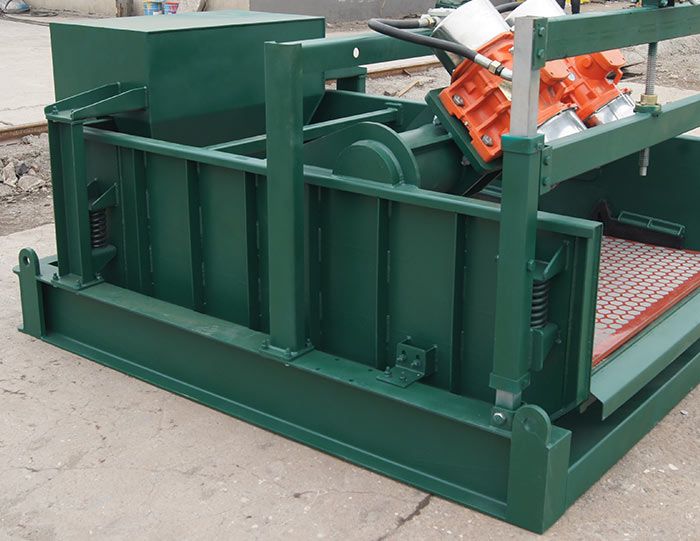

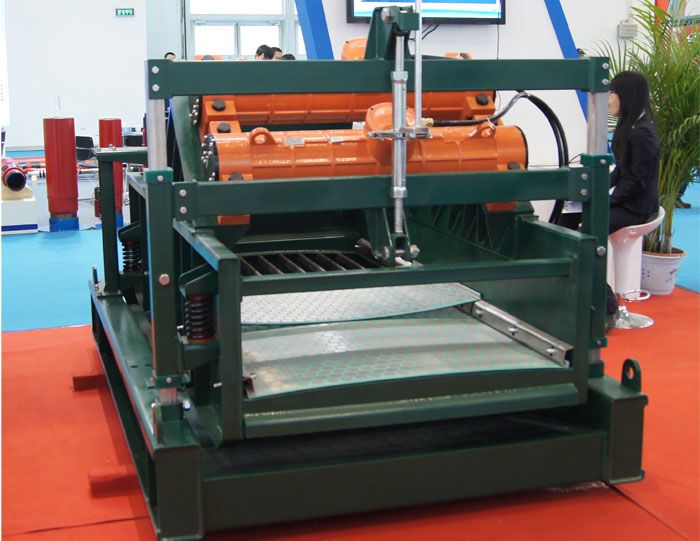

Linear Motion Shale Shaker In Drilling Rig

  • Linear motion shale shaker is the primary processing equipment of solid control system, it is used for separating the large drilling cuttings from drilling fluid, and it plays an important role in protecting drilling fluid performance.
Share

Due to the fact that extracting petroleum or gas from the ground involves piercing down with several thousand feet of dust and also rock to get to the oil reservoir, it is difficult, difficult work that takes a significant toll on your tools. Among one of the most vital tools in the oil as well as gas industries is the Shale Shaker In Drilling Rig, which is vital because it allows well operators to tidy and also reuse drilling fluid-- or piercing mud-- a valuable and also costly resource.


Pumped into the wellbore as it's being pierced, drilling fluid maintains the drill bit great and applies hydrostatic stress that stays out formation fluids. More vital, it carries out the drill cuttings, which is where the Shale Shaker In Drilling Rig can be found in. The Shale Shaker In Drilling Rig divides the cuttings from the drilling fluid by running it through a shaking screen, enabling the liquid to be pumped back right into the well as well as reused. In addition to saving money, reusing drilling fluid indicates it doesn' t have to be gotten rid of, minimizing governing as well as compliance costs.


Linear motion shale shaker is the primary processing equipment of solid control system, it is used for separating the large drilling cuttings from drilling fluid, and it plays an important role in protecting drilling fluid performance.

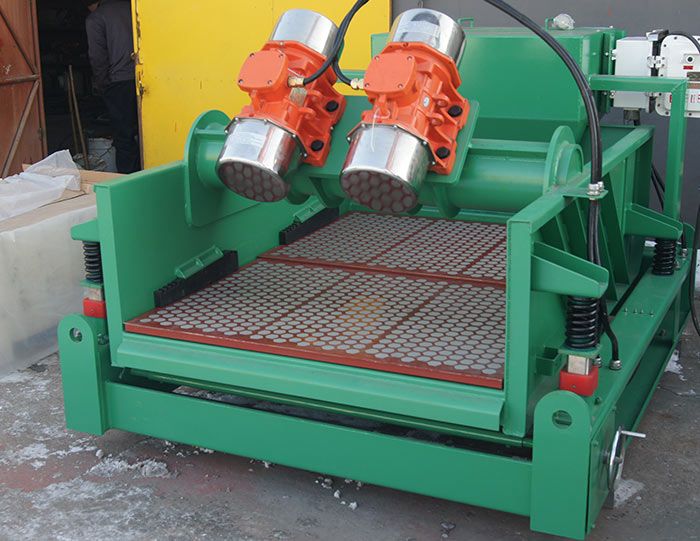

  (1) Adopt Italy OLI brand motors which have the advantages of high strength vibration, large screening area, adjustable screen box angle, little noise and high efficiency.

(2) Heat treatment of the complete shaker deck.Surface painting with heavy anticorrosion to extend the service life of shale shaker.

(3) Use the full adhesive hookstrip rigidity screen or steel frame screen, the fixed tensioning plate can make to replace screen more convenient and easier and also can replaced into many kinds of screens.

(4) Reasonable designing the cofferdam height of shale shaker logging tank can make mud buffer is uniformity flow, reduce direct impact on screen and effective extend the screen service life.

(5) We can manufacture dual or thribble shale shaker according to clients' requirements.


LINEAR MOTION SHALE SHAKER PARAMETERS

ModelDCZS850-2KDCZS700-3GDCZS630-3KDCZS830-3GDCZS585-4K
Vibrating ModeLinear Motion
Motor Power2× 1.5kW2× 1.5kW2× 1.5kW2× 1.72kW2× 1.72kW
Vibrating Strength≤7.0G
Amplitude5~6mm
Treating Capacity80 m3/h
352GPM
110 m3/h
484GPM
120 m3/h
528GPM
130 m3/h
572GPM
130 m3/h
572GPM
Deck Adjustment-1°~5°
Electric Specs380V/50HZ or 460V/60HZ or Customized
EX StandardsEx dⅡ BT4
Screen Qty2 panel3 panel3 panel3 panel4 panel
Screen Specification850× 1250mm40 ~ 200 mesh700× 1050mm40 ~ 200 mesh630× 1250mm40 ~ 200 mesh830× 1080mm40 ~ 200 mesh585× 1165mm40 ~ 200 mesh
Screen Area2.12 m22.2m22.36m22.7m22.73 m2
Screen TypeSteel FrameHookstripSteel FrameHookstripSteel Frame
Dimension2260× 1860× 1380mm2700× 1620× 1500mm2510× 1720× 1500mm3310× 1650× 1580mm2900× 1700× 1500mm
Weight1280kg1580kg1680kg1750kg1800kg
RemarkSpecific gravity of mud treated by shale shaker is 1.2g/cm3 ,viscosity:45S,API 40
