TBM Slurry Separation Plant

Share

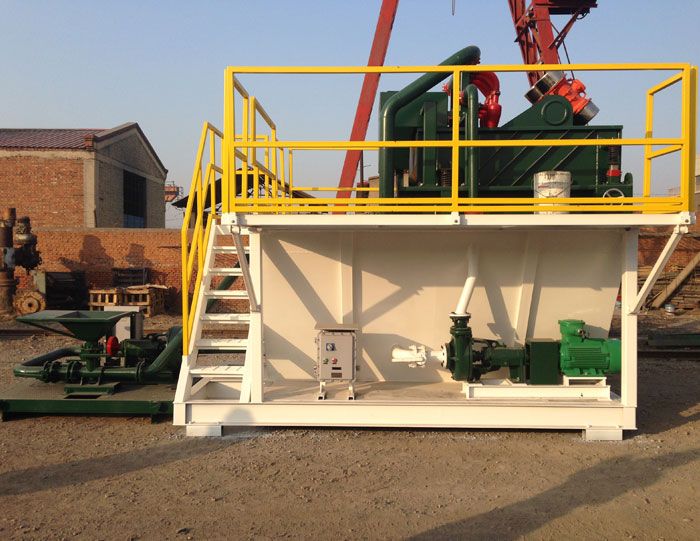

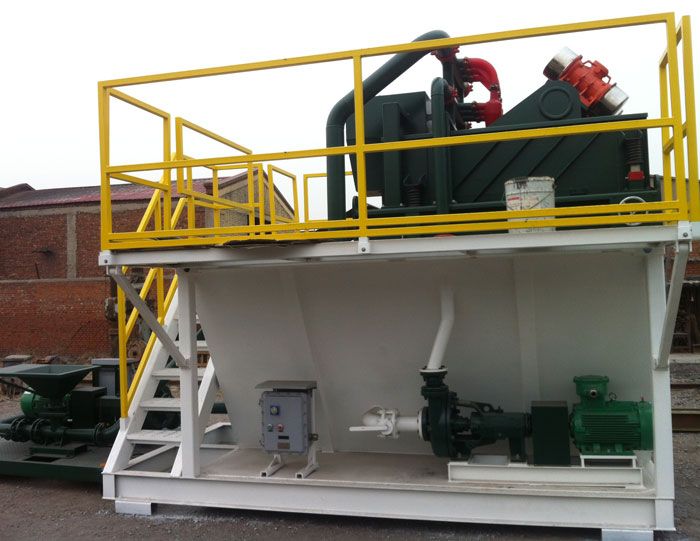

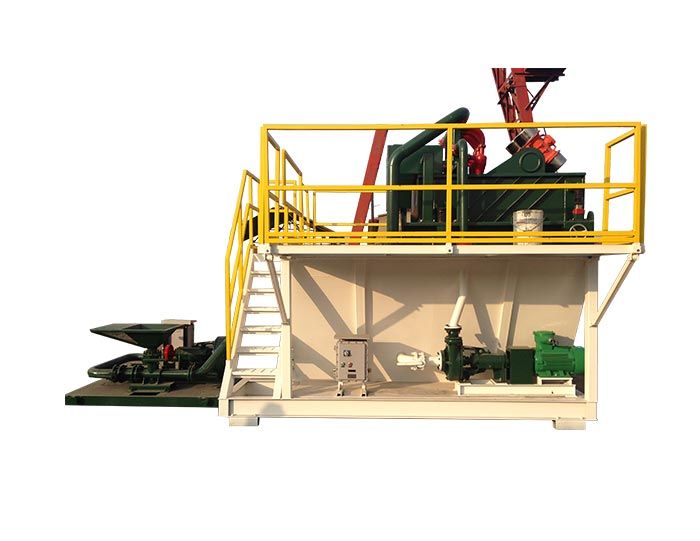

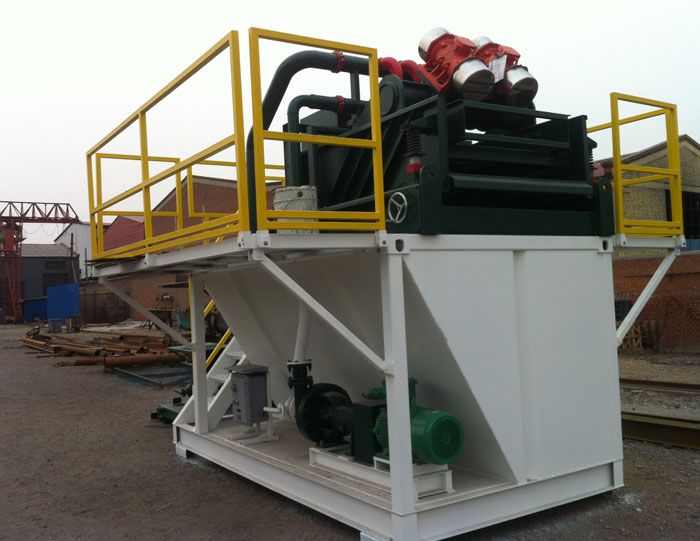

TBM (Tunnel Boring Machine) slurry separation plant



Introduction


TBM construction technology is the top technology in trenchless field.


An efficient TBM slurry separation plant is the basis for the successful use of slurry-supported tunnel boring machines(TBM). The DC Slurry separation plant is popular for project of AVN Machines , Mixshields  or Shaft Sinking Machines.


As DC Manufacture shale shakers, desanders, desilters, decanter centrifuges. So DC Solids Control is able to provide complete solutions for TBM slurry treatment project.



Advantages of TBM slurry separation plant


1. Customized design system with international standard equipment for your choose.

2. Complete after sales from DC solid control office

Double deck shale shaker will increase the capacity with less foot print.

3. High G force shale shaker and high speed decanter centrifuge with high efficient slurry separation.

4. OEM for full line of shaker, desander, desilter, and decanter centrifuge.

5. Compact structure design for fast movement.




Product parameters




ModelTreating capacity(m³/h)Separation pointd50 (μm)Dimension(m)Total power(kw) Weight(kg)
DCMK12012015-447.5×4.3×4.797.3810000



Process of TBM Slurry Separation Plant



1.A coarse shale shaker will remove big particles from the TBM Slurry.

2.A centrifugal pump will bake the slurry and feed to coarse hydrocyclones.

3.A dewatering shaker below the coarse hydro cyclones will drying the solids.

4.The other centrifugal pump will pump the slurry to fine hydrocyclones for separation of solids above 20 microns.

5.The fine shaker dewatering the solids discharge discharged from the fine hydrocyclones.

6.Decanter centrifuge will separate solids above 2-5 microns without chemical.

7.And the chemically enhanced decanter centrifuge will separate solids above 1 micron.


TBM Slurry Separation Plant
