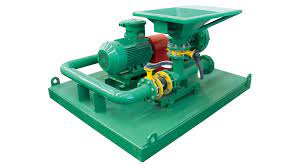

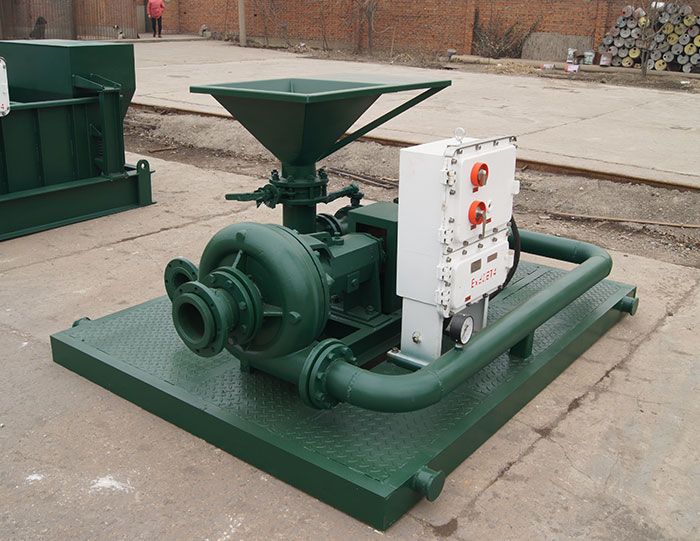

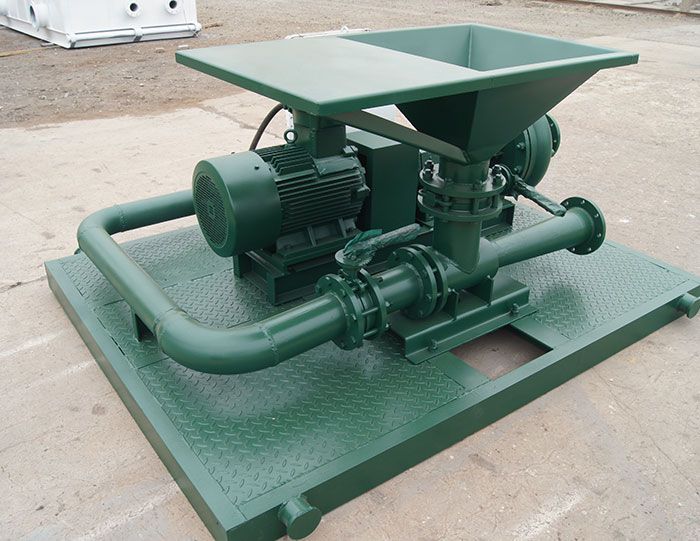

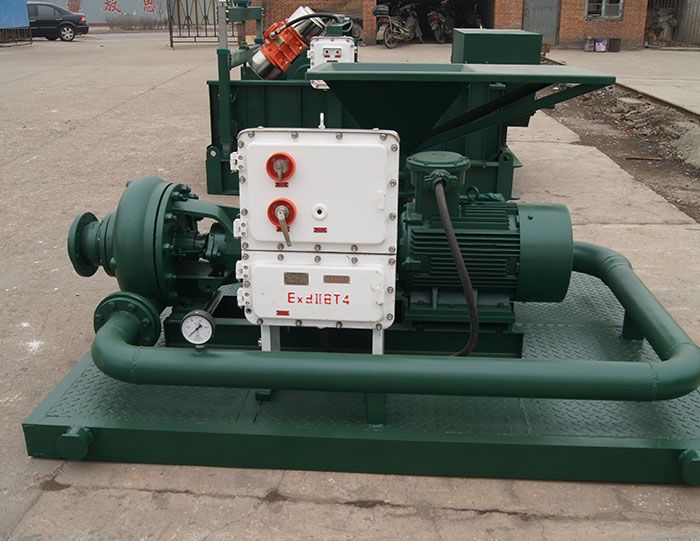

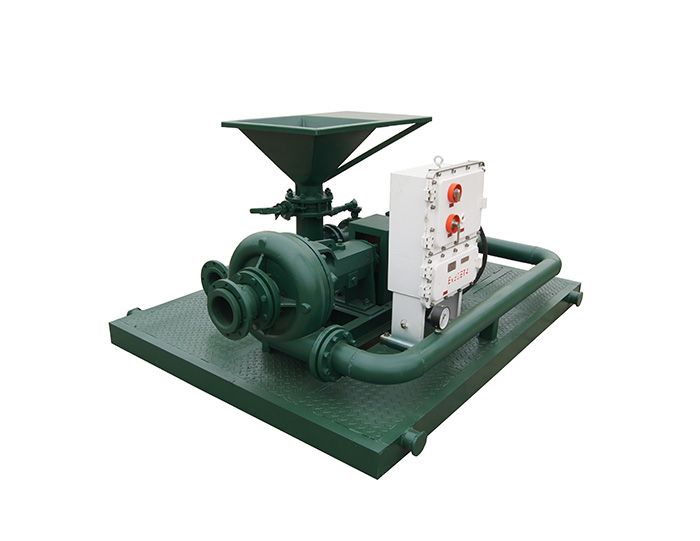

Jet Mud Mixer

  • Jet mud mixer is a specialized solids control equipment used for configuring and aggravating drilling fluid , thus change the density , viscosity and pH of drilling fluid.
Share

Jet mud mixer is a specialized solids control equipment used for configuring and aggravating drilling fluid , thus change the density , viscosity and pH of drilling fluid.

Drilling mud mixers from DC for drilling fluids and other drilling additives must be correctly blended and evenly homogenized before pumping down opening to execute their complex functions in oil & gas exploration. The practical, non-sheer DC tank mixing procedure for tedious mud mixing can be customized to fit any dimension or geometry tank.

APPLICATION OF JET MUD MIXER

When making up, put the materials of drilling fluid (such as betonies and barite powder) as well as matching chemical additives (such as a polymer) into the blending hopper and afterward go into the recycling storage tank through the jet unit. If placed right into the mud storage tank directly, the materials of drilling liquid and chemical additives will undoubtedly be mainly transferred or disposed of with each other. Also, we can not acquire diffused and well-proportioned bland fluid. The mud mixing system can increase the sheer stamina of the liquid in the tube, enhance product dispersion, and raise the liquid mixing stress to obtain the product in the entire cycle and mixing.

Suitable Material:

Air/water

Air/polymer

Water-based mud (WBM).

Oil-based mud (OBM).

Artificial base fluid (SBM).

JET MUD MIXER FEATURES AND ADVANTAGES

Jet Mud Mixer can maximum performance mixing. The rig site needs the enhancement of bentonite, polymers, and other powders to accomplish the performance of the soft mud usually, such as hole cleansing mud viscosity, water loss control, and the filter cake development. In applications of huge proportion soft mud, the application of barite prospective accident is more vital.

DC uses venturi tube combined with original jet nozzle created a new design of jet mud devices, not only simple in structure, but also have strong feasibility, which can meet the aggravation and configuration of drilling fluid in drilling solid control system from 1500m to 9000m.

We can also produce double jet mud mixers according to customers' requirements. Jet mud mixers produced by DC have the advantages of high mixing speed, safe and reliable performance, long service life and ect.

Advantages of DC Drilling Mud Mixer:

Mixes all types of drilling muds & drilling fluids faster than conventional mixers.

Oil based muds & high solid slurries

Water based muds & high solid slurries

Synthetic muds & high solid slurries

Chemical polymer additive muds & slurries

Cutting fluids

Drilling fluids

Can fit any size tank or geometry

More energy efficient than air spargers and mechanical mixers

ZERO in-tank maintenance

Mix 100% of the tank with no baffles or dead zones

Mix at any liquid level for better tank utilization

Adjustable speed and power for maximum efficiency

Custom engineered to fit any tank size, configuration or any number of tank

SUPPLY JET MUD MIXER PARAMETER TABLE


ModelDCSLH150-50DCSLH150-45DCSLH150-35DCSLH100-25DCSLH100-25
Treating Capacity230-375m3/h1012-1650GPM140-230m3/h616-1012GPM120-210 m3/h528-924GPM70-110 m3/h308-484GPM30-60m3/h132-264GPM
Matching PumpSB8 x6-13-55kWSB6 x5-13-45kWSB6 x5-12-30kWSB5 x4-12-22kWSB4 x3-12-15kW
Pressure0.25~0.40Mpa
Feed Inlet6〃(150)6〃(150)6〃(150)4〃(100)4〃(100)
Inlet  Diameter8〃6〃6〃5〃4〃
Outlet Diameter5〃5〃5〃4〃4〃
Hopper Size600x600mm600x600mm600x600mm500x500mm500x500mm
Mixing Speed100kg/min80kg/min≤80kg/min≤60kg/min≤40kg/min
Mud Density≤2.8g/cm3≤2.4g/cm3≤2.0g/cm3≤2.0g/cm3≤1.5g/cm3
Mud Viscosity≤120s≤120s≤120s≤80s≤60s
Dimension2200 x1760 x1250mm2200 x1760 x1100mm2200 x1760 x1100mm1800 x1720 x890mm1800 x1720 x890mm
weight1600kg1350kg1280kg950kg900kg
RemarkThe motor power of centrifugal pump choosed is according to drilling mud specific gravity 1.2g/cm3

DRILLING MUD MIXER STRUCTURE AND FUNCTIONING PRINCIPLE

Traditional SL (M) Collection Blending tool is a solitary jet mud blending device made of a straight centrifugal pump (sometimes with a shear pump, to boost cutting performance) and a three-way mixing receptacle attached by a manifold valve mounted on a base. A double mixing device with two collections centrifugal pump and two sets hopper is also offered according to the actual needs of users
