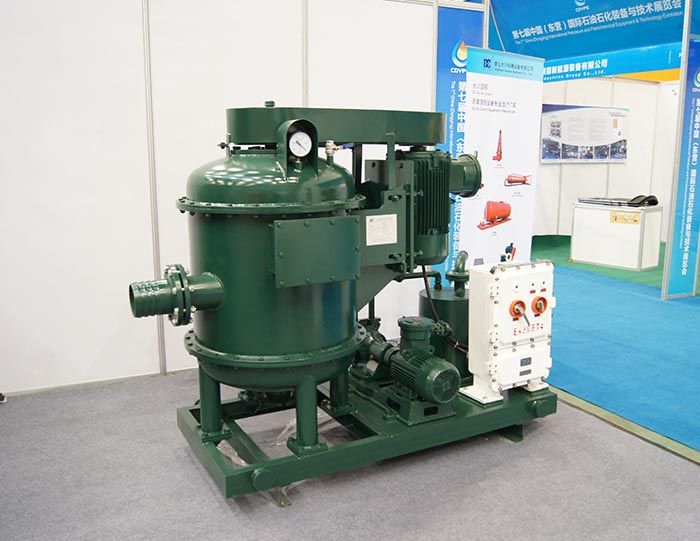

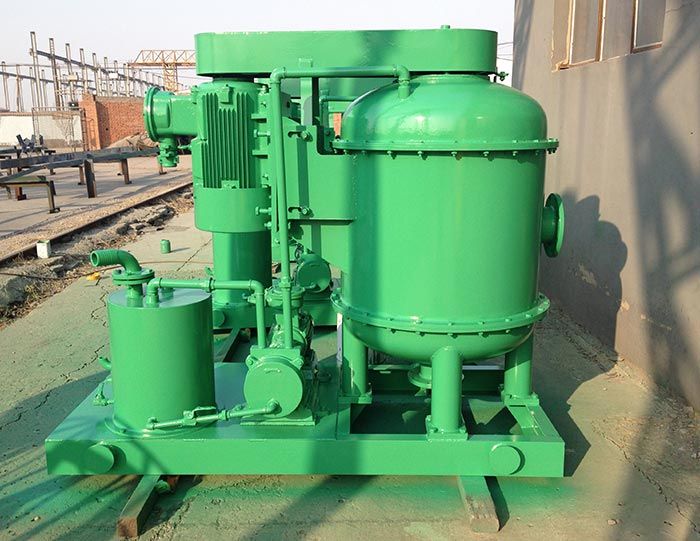

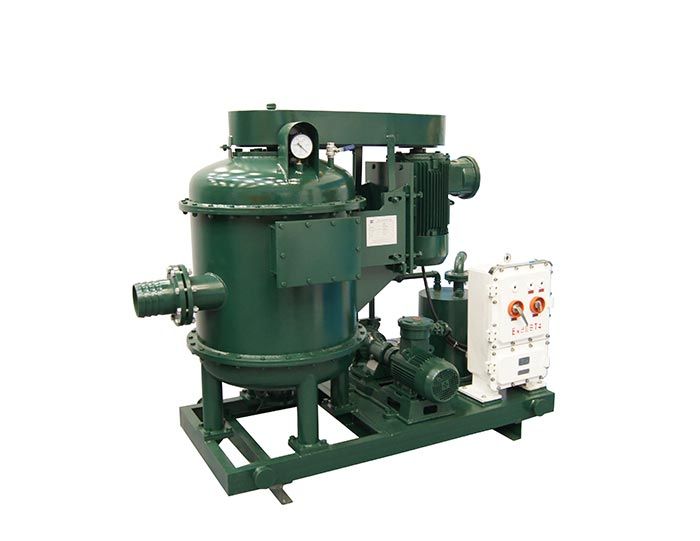

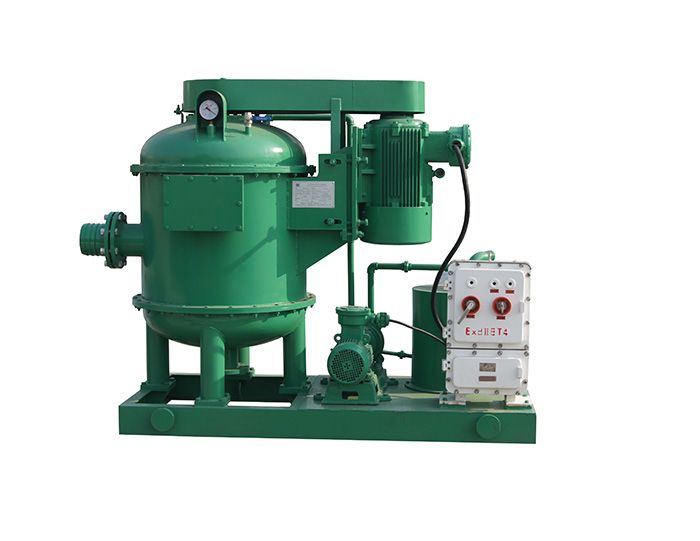

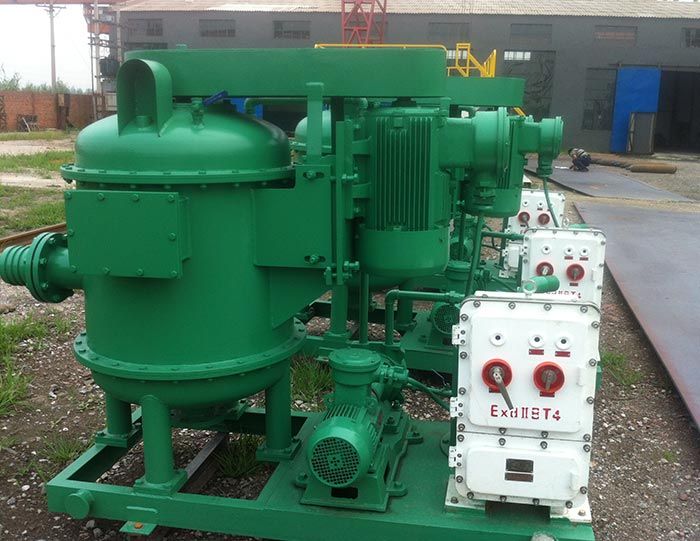

Solids Control System Vacuum Degasser

  • Vacuum degasser can quickly eliminate the invaded gas from the drilling mud , restore drilling mud proportion ,keep mud viscosity performance...

Vacuum degasser can quickly eliminate the invaded gas from the drilling mud  , restore drilling mud proportion ,keep mud viscosity performance and improve the quality of drilling mud.

(1)Negative pressure degasser can efficiently separate gas and liquid,filter out impurities and ensure smooth exhaust.

(2)During the working process of water ring vacuum pump,it always stays in isothermal condition , which is suitable for the suction of flammable and explosive gas and the performance is safe and reliable .

(3)Drilling mud hit the wall through the window of a rotor at a high speed, bubbles in the mud broken thoroughly,the degassing efficiency is high and more than 95%.

(4)The application of gas water separator will not make the water and gas discharged simultaneously and the discharge pipe is always clear.


Vacuum Degasser Parameters

ModelDCZCQ240DCZCQ270DCZCQ300DCZCQ360
Main Diameter700mm800mm900mm1000mm
Treating Capacity≤240 m3/h≤270 m3/h≤300 m3/h≤360 m3/h
Vacuum-0.02~-0.04MPa-0.02~-0.04MPa-0.030~-0.055MPa-0.040~-0.065MPa
Speed860rpm870rpm876rpm880rpm
Efficiency≥95%
Electric Specs380V/50HZ Or 460V/60HZ Or customized
EX StandardExdⅡBT4
Inlet Diameter114mm133mm159mm159mm
Outlet Diameter140mm159mm219mm219mm
Motor Power15kW22kW30kW37kW
Vacuum Power2.2kW3kW4kW7.5kW
Dimension1750×860×1500mm2000×1000×1670mm2250×1330×1650mm2400×1500×1850mm
Weight1150kg1450 kg1800 kg2100 kg
