Compact Structure Of Shale Shaker For HDD Field

Mar. 09, 2020

Shale shaker is the 1st phase solids control equipment in the oilfield drilling fluid. It is mainly used to treat the more than 74um drilling fluid from the well. Each drilling site must have this. It can be used as one set working, and also can be used two sets working together and also three sets working.

Shale shaker performance decides subsequent equipment process effect and usable life. It's the absolutely necessary equipment in solids control system. Shale shaker for solids control are devices that remove drill cuttings from the drilling fluid while circulating and drilling.

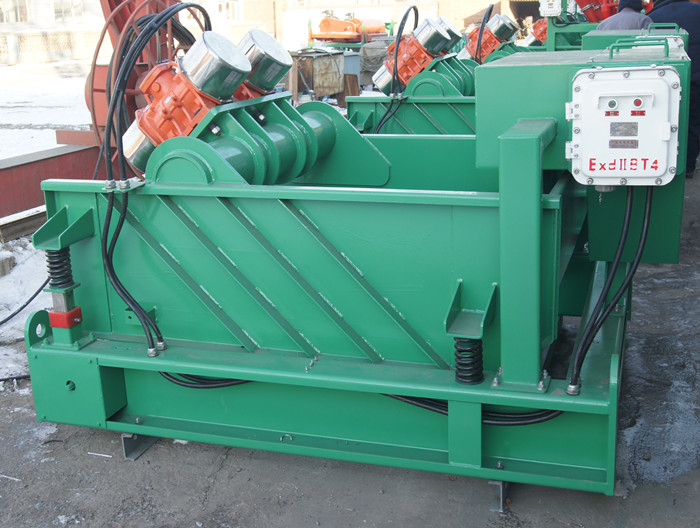

Compact Structure Of Shale Shaker For HDD Field

There are many different designs and research into the best design is constantly ongoing since solids control is vital in keeping down costs associated with the drilling fluid. The basic design consists of large, flat sheets of wire mesh screens or sieves of various mesh sizes that shakes or vibrates the drill cuttings, commonly shale shaker, across and off of the screens as the drilling fluid flows through them and back into the drilling fluids processing system, often called a mud system. This separates the drill cuttings, often called solids, from the drilling fluid so that it can be re-circulated back down the well bore. In oilfield industry, linear motion shale shaker are widely used for drilling mud solids control of oil gas well drilling for rig.

DC Supply a professional compact structure of shale shaker used for HDD which is more small and with lower cost which is warmly receieved by overseas HDD drilling site users.

Compact Structure Of Shale Shaker For HDD Field

Advantage of Linear Shale Shaker:

AWD device is adjustable from -1°~5°.

Shale shaker feeder can be weir feeder or box feeder.

Hi-speed conveyance of cuttings.

Higher processing capacity.

Able to process heavier solids loads.

Enhances cuttings processing volume.

Single side shale shaker screens tension system to easily change the screens.

G-forces linear motion up to 7.4 G (adjustable depending on the situation).

DC Solids Control can manufacture  balanced elliptical shale shaker, high quality liner shale shaker, drying shale shaker. We can meet customers' variable requirements. Clients feedback proved the advantages of our shale shaker in international market. Welcome to contact with us for more details.
