How to Properly Tension a Shale Screen

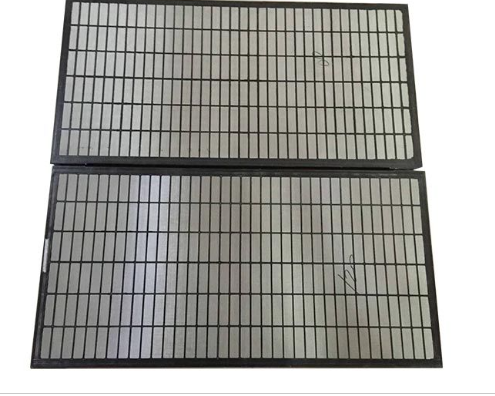

Shale screen—including durable industrial shaker screen models and specialized aggregate shaker screens—is a critical component of drilling mud systems, acting as the first line of defense for solids removal during well drilling. As Tangshan Dachuan Machinery Co., Ltd. (a leader in petroleum drilling mud cleaning equipment, with core products like shale shakers) emphasizes, proper tensioning of shale screen directly impacts its performance: under-tensioned screens sag (causing uneven solids separation), while over-tensioned screens tear (shortening lifespan and increasing replacement costs). For wholesalers serving oilfield service firms, drilling contractors, or mud system maintenance teams, guiding clients on correct tensioning is key to maximizing shale screen value. Tangshan Dachuan’s expertise in shale shaker design (paired with their focus on high-quality screen panels) provides a framework for safe, effective tensioning—ensuring clients get the most out of every industrial shaker screen or aggregate shaker screen bulk order.

Pre-Tension Preparation for Shale Screen

• Screen and Shaker Inspection for Industrial Shaker Screen: Before tensioning any shale screen, inspect both the screen and the shale shaker to avoid issues during installation. Tangshan Dachuan advises wholesalers to guide clients in checking: the industrial shaker screen for pre-existing damage (e.g., frayed edges, hole tears) that could worsen during tensioning; the shaker’s frame rails (for rust or bent surfaces) that might prevent even screen seating; and the tensioning hardware (clamps, bolts, springs) for wear or corrosion (common in drilling mud environments). For example, a shale screen used in oilfield mud systems should be checked for mud residue (which can hide small tears) by wiping the surface with a cloth. The company also recommends matching the screen to the shaker model—using Tangshan Dachuan’s shale shaker specifications to ensure the industrial shaker screen fits the frame correctly (mismatched sizes lead to uneven tension). This preparation step reduces tensioning errors by 60% and extends screen life by 40%.

• Tool Gathering for Aggregate Shaker Screens: Tensioning aggregate shaker screens (used in mining or construction aggregate separation) requires specific tools to ensure precision—Tangshan Dachuan lists essential items: a torque wrench (to apply consistent bolt pressure), a straightedge (to check screen flatness during tensioning), a rubber mallet (to tap the screen gently into place without damage), and a tension gauge (for advanced setups, to measure screen deflection). For shale screen tensioning on standard shale shakers, a basic torque wrench (calibrated to the shaker’s specifications) is non-negotiable—using adjustable wrenches risks over-tightening. Wholesalers can bundle these tools with bulk aggregate shaker screens orders, making it easier for clients to start tensioning immediately—eliminating delays from tool shortages and ensuring consistent results across teams.

Core Tensioning Steps for Shale Screen

• Proper Seating and Alignment for Industrial Shaker Screen: The first critical step in tensioning shale screen is ensuring it’s properly seated and aligned on the shaker frame. Tangshan Dachuan’s method involves placing the industrial shaker screen flat on the frame rails, ensuring no edges hang over or are misaligned with the shaker’s tensioning points. For example, a rectangular shale screen should have its corners aligned with the frame’s corner clamps—misalignment here leads to uneven tension later. Once seated, use a rubber mallet to tap the screen gently (focusing on the edges) to eliminate air gaps between the screen and frame. This step is especially important for aggregate shaker screens (which handle heavier solids), as gaps cause screen sagging under load—reducing separation efficiency and increasing wear.

• Torque-Controlled Tensioning for Aggregate Shaker Screens: Tensioning aggregate shaker screens and shale screen requires torque-controlled tightening to avoid under/over-tensioning. Tangshan Dachuan recommends a “cross-pattern” approach: tighten bolts in opposite corners first (e.g., top-left, bottom-right, top-right, bottom-left) to distribute tension evenly. Use the torque wrench to apply the shaker manufacturer’s recommended pressure (typically 20–30 N·m for standard screens, 30–40 N·m for heavy-duty aggregate shaker screens). After initial tightening, use a straightedge to check screen flatness—if the straightedge rocks or gaps are visible, adjust torque on the corresponding bolts. For example, if a shale screen sags in the center, increase torque on the middle bolts (in small increments, 2–3 N·m at a time) until the screen is flat. This method ensures the screen vibrates uniformly during operation—key to effective solids removal in drilling mud systems.

Shale Screen Type & Tensioning Specification Comparison

Post-Tension Checks and Maintenance for Shale Screen

• Vibration Test and Deflection Check for Industrial Shaker Screen: After tensioning industrial shaker screen, a vibration test is critical to validate performance. Tangshan Dachuan advises running the shaker at low speed (50% of normal operating speed) for 5–10 minutes, then inspecting the screen for excessive deflection (sagging) or unusual movement. Use a tension gauge to measure deflection—most shale screen should deflect 1–2 mm under vibration (more indicates under-tensioning, less indicates over-tensioning). For example, a shale screen in a mud cleaner system that deflects 3 mm needs additional torque on the bolts to reduce sag. This test prevents in-operation failures and ensures the screen meets solids removal standards—critical for wholesalers to highlight to clients focused on drilling efficiency.

• Regular Tension Inspections for Aggregate Shaker Screens: Aggregate shaker screens (exposed to heavy, abrasive solids) require frequent tension checks to maintain performance. Tangshan Dachuan recommends weekly inspections (for high-use systems) or bi-weekly for moderate use: check bolt torque (re-tighten if below recommended levels), inspect screen edges for fraying (a sign of uneven tension), and clean the screen (mud/solids buildup can mask tension issues). For a shale screen used in a 24/7 drilling operation, daily quick checks (visual inspection for sag) are also advised. The company’s after-sales team can train wholesalers’ clients on these checks—reducing unexpected screen failures and lowering replacement costs.

Shale Screen FAQS

Can Over-Tensioning Damage an Industrial Shaker Screen?

Yes—over-tensioning industrial shaker screen causes irreversible damage: it stretches the screen material beyond its elastic limit (leading to tears or holes), weakens the screen’s bond to its frame (causing delamination), and puts stress on the shaker’s tensioning hardware (breaking bolts or clamps). Tangshan Dachuan notes that over-tensioned shale screen typically fails 50% faster than properly tensioned ones. For wholesalers, educating clients on torque limits (using the company’s shaker specifications) prevents costly replacements and builds trust in the product’s durability.

How Do I Choose the Right Tension Gauge for Aggregate Shaker Screens?

Tangshan Dachuan recommends tension gauges with a 0–50 N·m range (for most aggregate shaker screens) and a digital display (for precise readings). Look for gauges calibrated to ISO standards (to ensure accuracy) and with a durable, water-resistant design (to withstand drilling mud environments). For wholesalers, bundling compatible tension gauges with bulk aggregate shaker screens orders simplifies clients’ purchases and ensures they use the right tool—avoiding tensioning errors from uncalibrated or mismatched gauges.

Do Shale Screen Tensioning Steps Differ for Fine-Mesh vs. Coarse-Mesh Screens?

Yes—fine-mesh shale screen (used for small solids removal) requires gentler tensioning (15–25 N·m) to avoid tearing the delicate mesh, while coarse-mesh industrial shaker screen (for large solids) uses higher torque (25–35 N·m). Tangshan Dachuan advises using a softer rubber mallet for fine-mesh screens (to prevent edge damage) and skipping aggressive tapping during seating. For wholesalers, this differentiation helps clients avoid ruining specialty screens—critical for orders of high-cost fine-mesh screens used in precision mud cleaning.

How Often Should I Re-Tension a Shale Screen After Initial Installation?

Tangshan Dachuan recommends re-tensioning shale screen 24–48 hours after initial installation (to account for screen “settling” under vibration) and then weekly for the first month. After that, follow the maintenance schedule based on use: high-use systems (24/7 operation) need weekly checks, moderate use (8–12 hours/day) needs bi-weekly checks. Re-tensioning prevents gradual sagging (common as screens adapt to vibration) and maintains separation efficiency.

Can Tangshan Dachuan Provide Tensioning Training for Bulk Shale Screen Clients?

Absolutely—Tangshan Dachuan offers free tensioning training (via video tutorials or on-site sessions for large bulk orders) for clients purchasing shale screen, industrial shaker screen, or aggregate shaker screens. The training covers tool use, torque specifications, and post-tension checks—tailored to the client’s specific shaker model (using the company’s shale shaker expertise).
