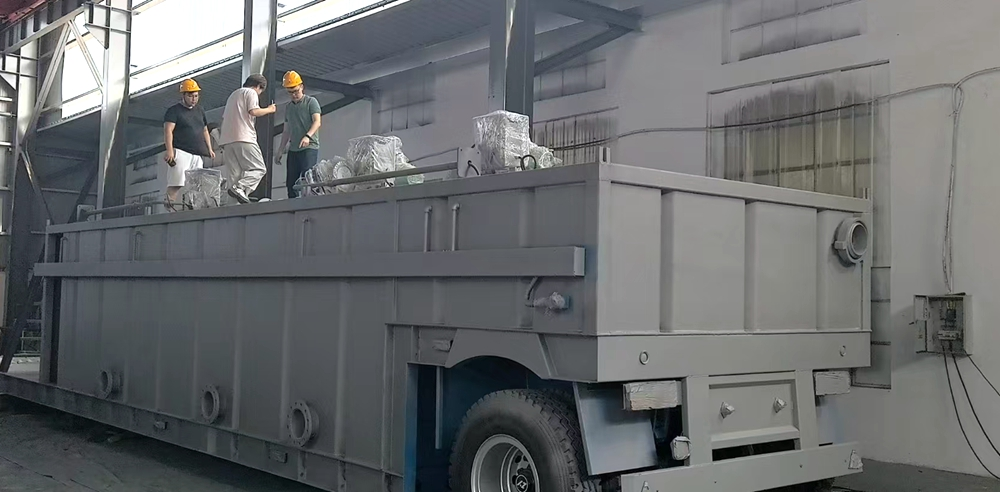

Oilfield Mud Tank Capacity Range

In the oilfield drilling machinery wholesale market, oilfield mud tank, drilling rig mud tank system, and drilling rig mud tanks are core components of solids control systems, serving clients like oilfield development companies, drilling contractors, and offshore drilling project teams. The capacity range of these tanks—paired with their role as carriers of drilling fluid and bases for solids control equipment—directly impacts wholesalers’ ability to meet clients’ needs (e.g., matching well depth requirements, ensuring smooth drilling fluid circulation, supporting efficient solids removal). Tangshan Dachuan Machinery Co.,ltd. designs oilfield mud tank with customizable capacity ranges, integrating compatibility with various solids control equipment, to support wholesalers in delivering tailored, high-performance solutions to commercial drilling clients.

Oilfield Mud Tank Product Specifications Table

Capacity Matching of Oilfield Mud Tank

• Tangshan Dachuan Machinery Co.,ltd.’s oilfield mud tank  offers a 50m³–200m³ standard capacity range, which is matched to well depth requirements: shallow wells (＜2000m) use 50m³–80m³ tanks (sufficient for low drilling fluid demand), while deep wells (2000m–5000m) require 120m³–200m³ tanks (to store large volumes of drilling fluid for continuous circulation)—wholesalers can guide clients to select capacities based on their well depth plans.

• The anti-corrosion inner lining of oilfield mud tank is designed to adapt to different capacity needs: for 50m³–100m³ tanks (smaller volume), the lining thickness is 8mm (balances weight and corrosion resistance); for 150m³–200m³ tanks (larger volume), the lining is thickened to 10mm (withstands higher fluid pressure)—this ensures the tank’s service life (8–10 years) regardless of capacity.

• Oilfield mud tank’s capacity is calibrated to support solids control equipment efficiency: a 100m³ tank can match a vibrating screen with 50m³/h processing capacity, ensuring drilling fluid flows into the tank at a rate that doesn’t cause overflow—Tangshan Dachuan Machinery Co.,ltd. provides capacity-equipment matching charts to simplify wholesalers’ client recommendations.

• Customizable 30m³–300m³ oilfield mud tank from Tangshan Dachuan Machinery Co.,ltd. meets special needs: small-scale mining drilling uses 30m³–50m³ tanks (limited site space), while offshore drilling projects (high drilling fluid demand) use 250m³–300m³ tanks—this flexibility allows wholesalers to serve niche client markets.

Capacity Layout of Drilling Rig Mud Tank System

• Drilling rig mud tank system from Tangshan Dachuan Machinery Co.,ltd. typically consists of 2–5 tanks, with total capacity ranging from 100m³–1000m³, and the capacity layout is based on equipment functions: the 1st tank (80m³–120m³) is equipped with vibrating screen, vacuum degasser, and desander (handles initial drilling fluid purification), while the 2nd tank (60m³–100m³) holds desilter and centrifuge (for deep purification)—this layout ensures each tank’s capacity matches its equipment’s processing speed.

• The capacity of each tank in drilling rig mud tank system is designed to avoid drilling fluid stagnation: the 1st tank’s 80m³–120m³ capacity allows it to receive fluid from the well (30m³–50m³/h) while feeding the vibrating screen, and the 2nd tank’s 60m³–100m³ capacity stores partially purified fluid before it enters the desilter—wholesalers should explain to clients that balanced capacity prevents bottlenecks in the circulation system.

• Drilling rig mud tank system’s additional tanks (50m³–80m³ each) are used for mud mixing and storage: these tanks supplement the main purification tanks, ensuring there’s always enough processed drilling fluid for the mud pump to inject into the borehole—Tangshan Dachuan Machinery Co.,ltd. adjusts the number of additional tanks based on the client’s daily drilling fluid consumption.

• The capacity coordination of drilling rig mud tank system considers fluid circulation time: total system capacity (100m³–1000m³) is 2–3 times the hourly drilling fluid circulation volume (50m³–300m³/h), ensuring fluid has enough time for multi-step purification (vibrating screen → degasser → desander → desilter → centrifuge)—this design maximizes solids removal efficiency.

Capacity Selection of Drilling Rig Mud Tanks

• Drilling rig mud tanks from Tangshan Dachuan Machinery Co.,ltd. require capacity selection based on well depth and drilling fluid requirements: for ultra-deep wells (＞5000m), single-tank capacity is 180m³–200m³ (large fluid volume needed to cool the drill bit), while for medium-depth wells (1000m–2000m), 80m³–120m tanks are sufficient—wholesalers can use well depth-capacity correlation tables to assist client decisions.

• The reinforced tank body of drilling rig mud tanks supports capacity-related equipment weight: a 150m³ tank can bear the weight of a 5-ton desander and 3-ton vacuum degasser (total 8 tons) without deformation, as the tank’s steel frame is reinforced with 12mm thick beams—this structural stability ensures safe operation even at maximum capacity.

• Drilling rig mud tanks’ capacity includes a 10%–15% buffer to handle unexpected fluid increases: for example, a 100m³ tank can actually hold 110m³–115m³ fluid, preventing overflow when the well produces more drilling fluid than expected (e.g., during high-pressure formation drilling)—Tangshan Dachuan Machinery Co.,ltd. marks the buffer level on the tank’s level gauge for easy monitoring.

• When selecting drilling rig mud tanks capacity, consider future project expansion: clients planning to extend well depth from 2000m to 3000m should choose 150m³–180m tanks (instead of 120m³) to avoid replacing tanks later—wholesalers can highlight this cost-saving advantage to clients with long-term drilling plans.

Oilfield Mud Tank FAQS

How to determine the number of drilling rig mud tanks in a system based on capacity needs?

Tangshan Dachuan Machinery Co.,ltd. recommends wholesalers guide clients to calculate based on total drilling fluid demand: if a project requires 200m³ total capacity (for 3000m well depth), a drilling rig mud tank system with 2 tanks (120m³ + 80m³) is suitable, with the 1st tank holding vibrating screen/degasser/desander and the 2nd holding desilter/centrifuge. For 500m³ total capacity (offshore drilling), a 3-tank system (200m³ + 180m³ + 120m³) works, adding an extra tank for mud mixing. The number of drilling rig mud tanks ensures each tank’s capacity matches its equipment’s function.

What factors besides well depth affect oilfield mud tank capacity selection?

Besides well depth, oilfield mud tank capacity selection depends on drilling fluid type (oil-based fluid is denser, requiring 10% larger capacity than water-based) and solids control equipment processing speed (a 60m³/h desilter needs a 80m³–100m³ tank to avoid fluid backlog). Tangshan Dachuan Machinery Co.,ltd. provides a comprehensive capacity-selection checklist for wholesalers, which includes these factors to help clients choose the right oilfield mud tank capacity without overbuying or undercapacity.

Can drilling rig mud tank system capacity be expanded after initial installation?

Yes, Tangshan Dachuan Machinery Co.,ltd.’s drilling rig mud tank system is designed for capacity expansion: the initial system (e.g., 2 tanks, 200m³ total) can add 1–2 more tanks (50m³–150m³ each) by connecting with standardized flanges and pipelines. The company also ensures the system’s control panel can adapt to additional tanks, so wholesalers can offer clients expansion services when their drilling projects scale up (e.g., extending well depth or increasing drilling rig numbers).

How does oilfield mud tank capacity affect solids control efficiency?

oilfield mud tank capacity directly impacts solids control efficiency: a tank with insufficient capacity (e.g., 50m³ for a 40m³/h desander) causes fluid to overflow, skipping purification steps; a properly sized tank (e.g., 80m³ for 40m³/h desander) gives fluid enough time to be processed by vibrating screen, degasser, and desander sequentially. Tangshan Dachuan Machinery Co.,ltd. tests each oilfield mud tank capacity with matching equipment to ensure ＞95% solids removal efficiency, which wholesalers can confirm via sample testing.

What maintenance measures are needed for drilling rig mud tanks of different capacities?

For small-capacity drilling rig mud tanks (50m³–80m³), monthly cleaning of the inner lining (to remove residual solids) is sufficient; for large-capacity tanks (150m³–200m³), add quarterly inspection of the reinforced frame (to check for deformation under heavy fluid weight). Tangshan Dachuan Machinery Co.,ltd. provides capacity-specific maintenance manuals for wholesalers, which include steps like checking level gauge accuracy (critical for monitoring capacity) and replacing anti-corrosion lining (every 5 years for all capacities) to extend tank life.
