The Role of Shale Shaker in Drilling Operations

Shale shaker—the backbone of shale shaker drilling operations and a core component of drilling mud solid control systems—plays a non-negotiable role in separating large drill cuttings from drilling fluid, protecting equipment, and ensuring efficient, cost-effective well drilling. As Tangshan Dachuan Machinery Co., Ltd. (a leader in petroleum drilling mud cleaning equipment, with shale shaker as one of its flagship products) emphasizes, shale shaker acts as the “first line of defense” in solid control: without it, drill cuttings would contaminate drilling fluid, damage downstream equipment (like pumps or desanders), and increase operational costs. For wholesalers serving oilfield service firms, drilling contractors, or mud system integrators, understanding and communicating the multifaceted role of shale shaker is key to helping clients maximize drilling efficiency. Tangshan Dachuan’s expertise in linear motion shale shaker design (paired with their focus on high-quality shale shaker parts) further underscores how this equipment drives success in shale shaker drilling projects.

Primary Role of Shale Shaker in Drilling Fluid Solid Control

• Drill Cuttings Separation for Shale Shaker Drilling: The most critical role of shale shaker in shale shaker drilling is separating large drill cuttings (typically 75 microns and larger) from drilling fluid. Tangshan Dachuan’s linear motion shale shaker (the primary solid control equipment, as noted in their product line) uses high-frequency vibrations to move drilling fluid across screen panels—fluid passes through the screen, while cuttings are discharged off the end. For example, in an oilfield shale shaker drilling operation, a linear motion shale shaker can process 100+ cubic meters of drilling fluid per hour, removing 90% of large cuttings before the fluid moves to secondary equipment (like desanders or desilters). This separation protects drilling fluid performance: clean fluid maintains its viscosity and lubricating properties, reducing friction on drill bits and extending their lifespan. For wholesalers, this role highlights shale shaker as a cost-saving investment—clients spend less on new drilling fluid and replacement bits.

• Drilling Fluid Reuse Promotion via Shale Shaker: Shale shaker directly enables drilling fluid reuse, a major cost driver in shale shaker drilling. By removing cuttings, the shale shaker restores fluid to a usable state, eliminating the need to discard and replace large volumes of expensive fluid. Tangshan Dachuan’s shale shaker designs (paired with their mud tanks for fluid storage) let clients reuse 80–85% of drilling fluid—vs. 50–60% without effective shaker separation. For a land-based shale shaker drilling project, this translates to saving 10,000+ liters of fluid per well, cutting material costs by 30–40%. Wholesalers can emphasize this to clients focused on sustainability: fluid reuse reduces waste disposal (a major environmental and financial burden) and aligns with eco-friendly drilling standards.

Shale Shaker Types and Their Roles in Shale Shaker Drilling

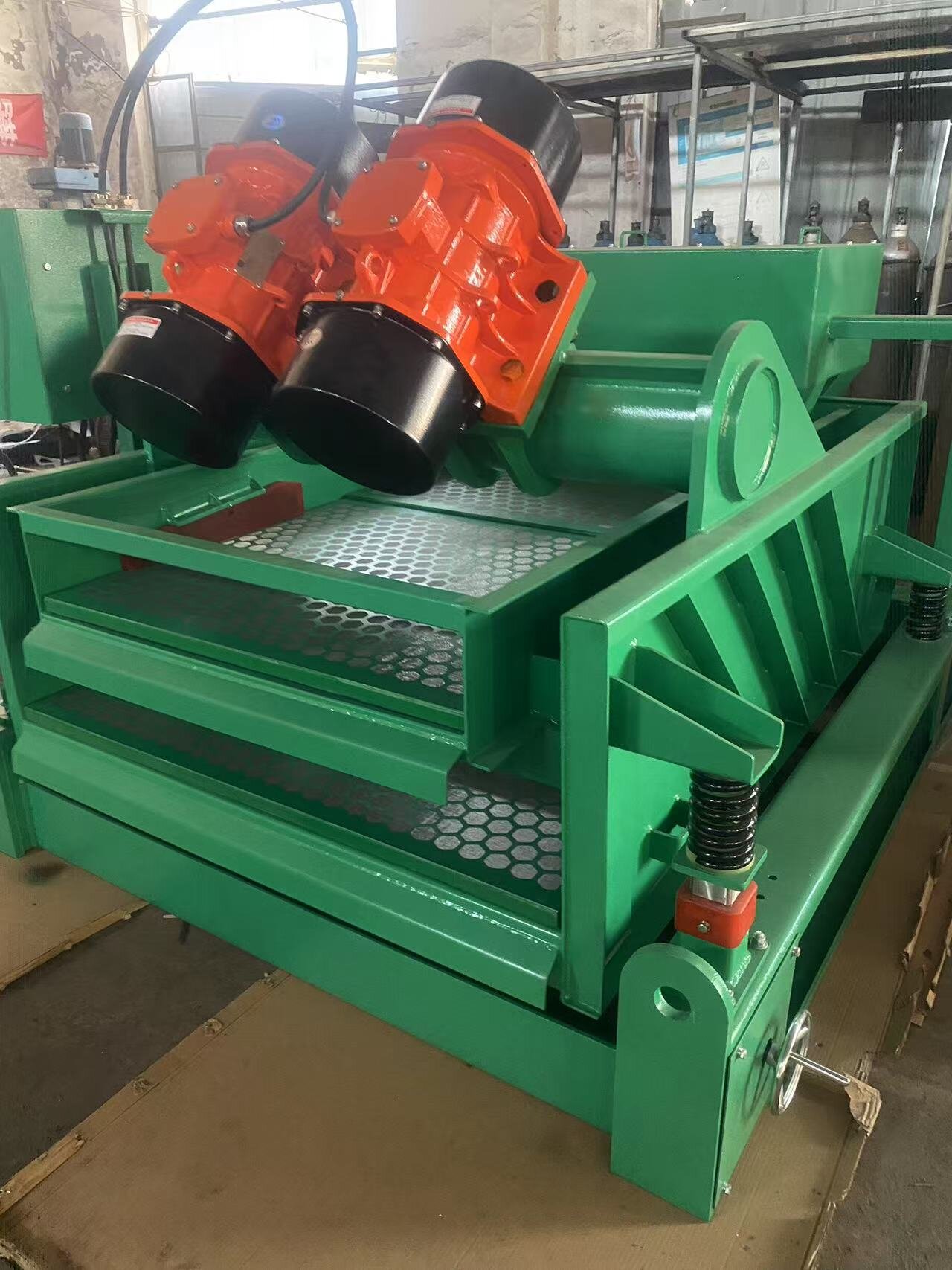

• Linear Motion Shale Shaker for High-Efficiency Separation: As Tangshan Dachuan highlights, linear motion shale shaker is the workhorse of most shale shaker drilling operations—its straight-line vibration pattern ensures even fluid distribution across the screen, maximizing separation efficiency. This type of shale shaker excels in high-volume operations (e.g., horizontal oil drilling) where large volumes of cuttings are generated. The linear motion also reduces screen clogging (common with other shaker types) by keeping cuttings moving steadily off the screen. For example, a linear motion shale shaker used in a shale gas shale shaker drilling project can handle the high cuttings load from hard rock formations without downtime. Tangshan Dachuan’s linear motion models include interchangeable screen panels (a key shale shaker part) to match fluid viscosity and cutting size—further boosting efficiency.

• Circular Motion Shale Shaker for Specialized Drilling Scenarios: While less common than linear motion models, circular motion shale shaker plays a role in specialized shale shaker drilling (e.g., small-diameter well drilling or low-volume fluid flow). Its circular vibration pattern is gentler on fluid, making it ideal for fragile drilling fluid formulations (e.g., water-based fluids used in sensitive environmental areas). A circular motion shale shaker from Tangshan Dachuan’s product line might be used in a municipal water well shale shaker drilling project, where preserving fluid quality is critical to avoiding groundwater contamination. This type of shale shaker also uses durable shale shaker parts (like heavy-duty springs and motors) to withstand continuous operation in tight spaces.

Shale Shaker Part Performance and Their Impact on Drilling Operations

Shale Shaker’s Role in Protecting Downstream Drilling Equipment

• Preventing Pump and Valve Damage in Shale Shaker Drilling: Shale shaker acts as a barrier for downstream equipment (like centrifugal pumps or mud valves) in shale shaker drilling—without it, large cuttings would enter these components, causing wear, clogging, or catastrophic failure. Tangshan Dachuan’s shale shaker (paired with their centrifugal pumps) ensures only clean fluid reaches the pump: a single large cutting (1mm+) can scratch a pump impeller, reducing its efficiency by 20% and shortening its lifespan by 50%. For example, in an offshore shale shaker drilling operation, a well-maintained shale shaker prevents pump failures that would require costly underwater repairs. Wholesalers can frame shale shaker as “equipment insurance”: the upfront cost of a quality shale shaker pales in comparison to replacing a $10,000+ pump.

• Reducing Desander/Desilter Load with Shale Shaker: Shale shaker lightens the load on secondary solid control equipment (desanders, desilters) by removing large cuttings first. In shale shaker drilling, desanders/desilters are designed to handle small solids (20–75 microns)—if they’re forced to process large cuttings, they clog quickly, requiring frequent maintenance. Tangshan Dachuan’s shale shaker removes 90% of solids larger than 75 microns, letting desanders focus on their intended role. A shale shaker drilling project using this setup reduces desander maintenance time by 40%, keeping the entire solid control system running smoothly. This synergy between shale shaker and other equipment is a key selling point for wholesalers: it shows clients how shale shaker optimizes their entire drilling setup, not just one component.

Shale Shaker FAQS

How Often Should Shale Shaker Parts Be Replaced in Shale Shaker Drilling?

Replacement frequency depends on shale shaker part type and usage: screen panels (the most wear-prone shale shaker part) need replacement every 1–2 weeks in high-volume shale shaker drilling (e.g., oilfields), while vibration motors last 1–2 years with regular maintenance. Tangshan Dachuan recommends weekly inspections of shale shaker parts (checking for screen tears, loose clamps, or motor noise) to avoid unexpected failures.

Can a Shale Shaker Be Used for Both Oil and Water-Based Drilling Fluids?

Yes—Tangshan Dachuan’s shale shaker models are compatible with both oil and water-based fluids, though shale shaker parts may need adjustment: water-based fluids (which are less viscous) work best with finer-mesh screen panels, while oil-based fluids (more viscous) require coarser screens to prevent clogging. The company’s linear motion shale shaker also includes adjustable vibration speeds—lower speeds for oil-based fluids (to avoid splashing) and higher speeds for water-based fluids (to boost separation).

What Happens if a Shale Shaker Fails During Shale Shaker Drilling?

A shale shaker failure during shale shaker drilling halts solid control: cuttings contaminate drilling fluid, which then damages downstream equipment (pumps, desanders) and forces drilling to stop. In a typical oilfield operation, a 24-hour shale shaker outage can cost $50,000+ in downtime and repairs. Tangshan Dachuan mitigates this with their after-sales service: they provide emergency shale shaker parts delivery (for wholesalers’ clients) and on-site maintenance support to get the shale shaker running again quickly.

How Do I Size a Shale Shaker for My Shale Shaker Drilling Project?

Sizing depends on two key factors: drilling fluid flow rate (cubic meters per hour) and maximum cutting size. Tangshan Dachuan’s team helps wholesalers calculate the right shale shaker size: for example, a shale shaker drilling project with a 120 m³/h fluid flow rate needs a linear motion shale shaker with a screen area of 1.5–2 m² to handle the volume. The company also considers formation type (hard rock generates larger cuttings, requiring more robust shale shaker parts) to ensure the shale shaker meets project demands. For wholesalers, this sizing support eliminates client guesswork—ensuring they order the right equipment for their needs.

Are Linear Motion Shale Shaker More Expensive Than Other Types, and Is the Cost Worth It?

Linear motion shale shaker typically costs 15–20% more than circular motion models, but the investment is worth it for most shale shaker drilling projects: they process 30% more fluid, last 50% longer (thanks to durable shale shaker parts like heavy-duty motors), and reduce downstream maintenance costs by 40%. Tangshan Dachuan’s linear motion models also offer a faster return on investment—clients recoup the extra cost in 3–6 months via fluid reuse and reduced equipment repairs.
