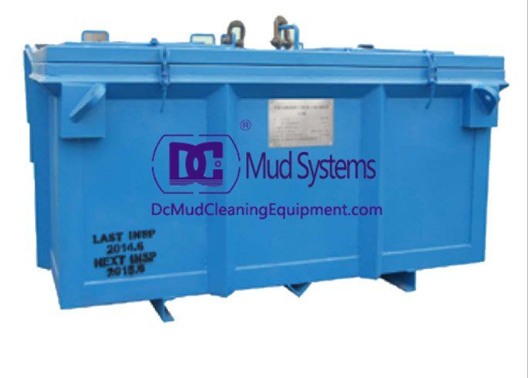

Design Improvements for the Modern Cutting Box

In petroleum drilling and trenchless operations, cutting box (or cuttings box) systems play a critical role in collecting, storing, and transporting drilling cuttings—the solid waste generated during drilling. Outdated cutting box designs often suffer from issues like leakage, inefficient loading/unloading, and poor durability, leading to environmental risks, increased labor costs, and project delays. Modern design improvements address these pain points, turning cuttings box into a more efficient, eco-friendly, and user-centric component of drilling operations. Tangshan Dachuan Machinery Co.,ltd., a leading provider of petroleum drilling mud cleaning equipment (with core products like shale shakers and vertical cutting dryers that integrate with cutting box systems), leverages its engineering expertise to develop and supply advanced cuttings box solutions. For wholesalers serving drilling contractors, oilfield operators, and trenchless construction firms, partnering with Tangshan Dachuan means accessing not just high-quality cutting box systems, but also designs optimized for modern drilling demands—backed by the company’s end-to-end service (production, sales, after-sales, maintenance) and commitment to durability.

Leak-Proof Design Enhancements for Cuttings Box

• Sealed Joints & Reinforced Liners: Traditional cuttings box systems often leak drilling cuttings or contaminated mud through poorly sealed joints, posing environmental risks (e.g., soil or water contamination) and creating cleanup headaches. Modern cutting box designs from Tangshan Dachuan feature dual-layer rubber gaskets at all joints—these gaskets resist wear from abrasive drilling cuttings and maintain a tight seal even under temperature fluctuations (-20°C to 60°C). Additionally, the inner liners of the cuttings box are made of high-density polyethylene (HDPE) or wear-resistant steel, preventing punctures from sharp cuttings (e.g., shale or sandstone fragments). A wholesaler supplying onshore drilling clients reported that these leak-proof improvements reduced environmental compliance violations by 90% for their clients, as no drilling cuttings escaped during transport. Wholesalers should highlight this leak-proof design, as it directly addresses a top concern for drilling firms operating in regulated areas.

• Sloped Base for Complete Drainage: Stagnant mud left in the bottom of a cutting box leads to odor, corrosion, and increased weight during transport. Modern designs include a 5–10° sloped base that directs all mud toward a central drain valve—this ensures complete drainage before unloading drilling cuttings, reducing cleanup time and preventing corrosion of the box’s interior. Tangshan Dachuan’s cuttings box systems also feature large-diameter drain valves (2–3 inches) that won’t clog with fine cuttings, ensuring smooth drainage even for thick mud. A wholesaler serving offshore drilling clients noted that the sloped base cut their clients’ box cleaning time by 40%, letting crews reuse the cutting box faster for subsequent drilling phases. Wholesalers can frame this as an “efficiency boost,” showing clients how design improvements translate to time and labor savings.

Types of Modern Cutting Box for Drilling Cuttings Needs

Ergonomic & Automated Features for Cutting Box

• Automated Loading/Unloading Systems: Manual loading and unloading of drilling cuttings into a cutting box is labor-intensive and risky (e.g., back injuries from heavy lifting). Modern designs integrate automated features like hydraulic doors and conveyor belt compatibility—Dachuan’s cuttings box systems, for example, include hydraulic end doors that open/close with a push of a button, eliminating the need for workers to manually lift heavy latches. Additionally, the boxes are designed with alignment guides for conveyor belts, ensuring drilling cuttings flow directly into the box without spillage. A wholesaler supplying large-scale oilfield clients reported that automated loading reduced their clients’ labor costs by 30%, as fewer workers were needed to manage the cutting box system. Wholesalers should emphasize this ergonomic benefit, as workplace safety and labor efficiency are top priorities for drilling firms.

• Ventilation for Hazardous Drilling Cuttings: Some drilling cuttings (e.g., those from oil-based mud drilling) release volatile organic compounds (VOCs) that pose health risks to workers. Modern cuttings box designs include built-in ventilation systems—small, energy-efficient fans that circulate air through the box and expel VOCs through a filtered vent. Tangshan Dachuan’s cutting box systems use HEPA filters that trap 99.97% of airborne particles, ensuring safe air quality for workers handling the box. The ventilation system also prevents pressure buildup inside the box, reducing the risk of leaks when the doors are opened. A wholesaler serving industrial drilling clients noted that the ventilation feature helped their clients meet occupational health standards, reducing worker complaints about odors and respiratory irritation. Wholesalers can frame this as a “safety upgrade,” appealing to clients focused on protecting their crew’s well-being.

Cutting Box FAQS

Can Modern Cuttings Box Handle Both Wet and Dry Drilling Cuttings?

Yes—modern cuttings box designs (including Tangshan Dachuan’s models) are engineered to handle both wet (e.g., from water-based mud) and dry (e.g., from oil-based mud with solids dried by a vertical cutting dryer) drilling cuttings. Wet drilling cuttings are contained by the leak-proof liners and sloped base (for drainage), while dry cuttings are prevented from blowing out by sealed doors and optional dust covers. Dachuan’s cuttings box systems also have a weight capacity that accommodates the extra heft of wet cuttings (up to 2,000 kg for large models). A wholesaler supplying mixed-drilling clients reported that their clients used the same cuttings box for both wet and dry operations, reducing the need to stock multiple box types. Wholesalers should confirm this versatility, as it simplifies inventory for clients with diverse drilling projects.

How Easy Is It to Transport a Mobile Cutting Box?

Mobile cutting box models are designed for easy transport—Tangshan Dachuan’s mobile cuttings box systems include forklift pockets (positioned for balanced lifting) and optional trailer hitches for towing short distances. The boxes are lightweight (500–800 kg empty) but durable, so they can be lifted by standard construction forklifts or loaded onto flatbed trucks. Additionally, the leak-proof design ensures no drilling cuttings spill during transport, even over bumpy roads. A wholesaler supplying remote drilling clients noted that their crews could move the mobile cutting box between drill sites in under 30 minutes, saving time compared to transporting traditional, bulkier boxes. Wholesalers should highlight this transport ease, as it’s critical for clients with multiple drill sites or remote operations.

Are Modern Cutting Box Systems Compatible with Existing Drilling Equipment?

Absolutely—modern cutting box designs (like those from Tangshan Dachuan) are built for compatibility with standard drilling equipment, including shale shakers, conveyor belts, and vertical cutting dryers. The boxes have standardized inlet/outlet sizes (matching Dachuan’s shale shaker discharge ports) and alignment markers that ensure easy connection to conveyor systems. For example, Dachuan’s cuttings box can be positioned directly below a shale shaker’s discharge, so drilling cuttings flow into the box without additional adapters. A wholesaler supplying clients with older drilling setups reported that the modern cutting box integrated seamlessly with their existing equipment, requiring no major modifications. Wholesalers should emphasize this compatibility, as it reduces adoption barriers for clients hesitant to replace their entire drilling setup.

What Maintenance Is Required for a Modern Cuttings Box?

Modern cuttings box systems require minimal maintenance, thanks to durable materials and simplified designs. Key tasks include: 1) Weekly: Inspecting gaskets for wear and cleaning the drain valve to prevent clogging; 2) Monthly: Checking for corrosion (especially on offshore models) and tightening any loose bolts on reinforced corners; 3) Quarterly: Replacing HEPA filters (if equipped with ventilation) and lubricating hydraulic door hinges (for automated models). Tangshan Dachuan provides maintenance kits (with replacement gaskets, filters, and lubricant) for wholesalers to stock, making upkeep easy for clients. A wholesaler supplying small-scale drilling firms noted that their clients spent less than 2 hours per month on cuttings box maintenance, freeing up time for core drilling tasks. Wholesalers should share this low-maintenance benefit, as it reduces long-term operational costs for clients.

Can Cutting Box Be Customized for Specific Drilling Project Sizes?

Yes—Tangshan Dachuan offers customization for cutting box systems to match specific project sizes: small models (1–2 cubic meters) for trenchless or small onshore wells, medium models (3–5 cubic meters) for standard onshore drilling, and large models (6–10 cubic meters) for offshore or high-volume oilfield operations. Customization also includes adding features like extra ventilation (for hazardous drilling cuttings) or larger drain valves (for thick mud). A wholesaler supplying oilfield clients with varying project sizes reported that customized cuttings box systems let their clients avoid overpaying for unused capacity or struggling with undersized boxes.
