HDD Compact mud system for NewZeland clients

DC Solids Control is a top manufacturer of Horizontal Directional Drilling(HDD) Mud Equipment/HDD Mud Recycling System. DC Compact drilling mud recycling system has been applied in many countries for HDD and CBM drilling operation.

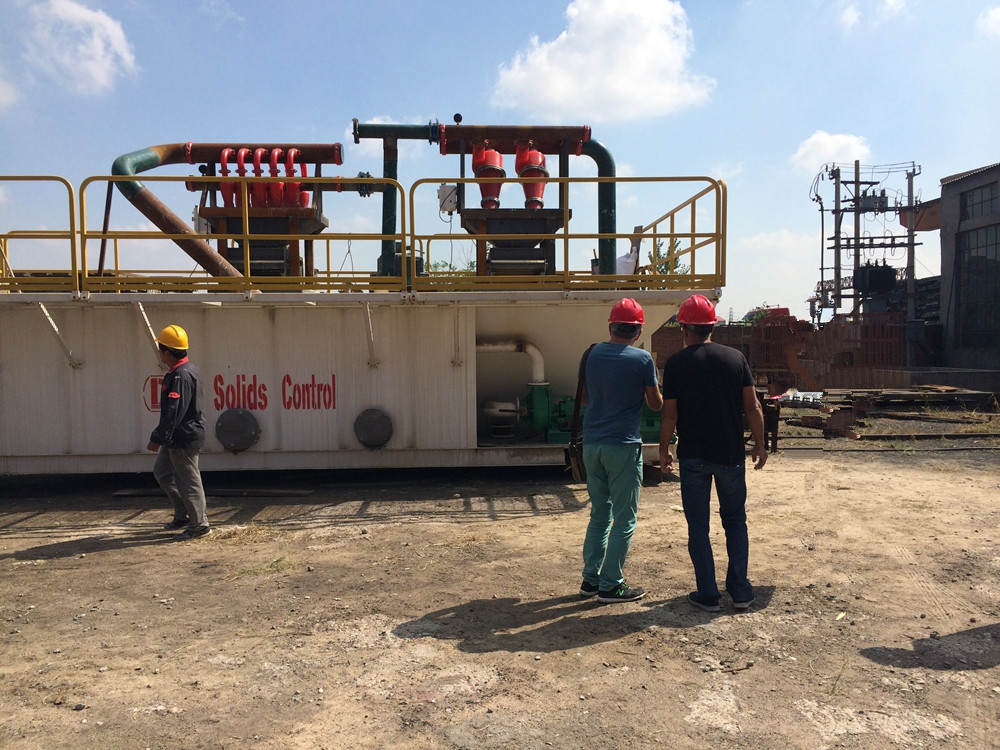

The mud system is engineer designed to clean, recycle and mixing drilling mud in one mud tank package. Yesterday, the Newzeland clients came to our factory to test the500GPM HDD mud system. The flow capacity is 500gpm + with shaker operating at 40 mesh screens and mud density 1.2g/cm³. It removes undesired drilled cuttings down to 12 microns with 4″ desilter cones. Compact design and small foot print allows it to be easily moved and transported .

Mud Cleaning System Configuration

1 x high G force linear shaker

2 x 10″ desander, 8 x 4″ desilter, 1 x dewatering shaker screen

2 x transfer pump,

1 x mixing pump, 1 x mixing mud hopper

1 x mud agitator

cat walk, handrails, valves etc.

electric control system

DC Solid control design and manufacture compact drilling mud system from 200GPM upto 2000GPM for HDD, water well drilling etc. Customized ! Compact ! Module-Built!
