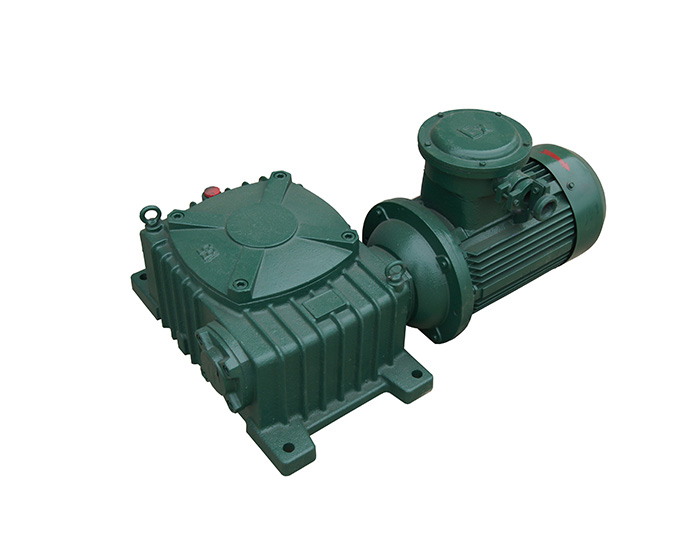

Key Functions of a Mud Agitator in Drilling Operations

Drilling mud is the "blood" of petroleum drilling operations, and maintaining its stable performance is crucial for ensuring drilling efficiency and wellbore safety. The mud agitator, as a vital component of drilling mud treatment systems, undertakes the core task of keeping mud homogeneous and preventing solid particle sedimentation. Also known as drilling mud agitator, especially the widely used horizontal agitator models, it plays an irreplaceable role in the entire drilling workflow. Tangshan Dachuan Machinery Co.,ltd., a professional enterprise focusing on the production, sales, after-sales, and maintenance of petroleum drilling mud cleaning equipment and trenchless mud recovery systems, manufactures high-performance mud agitator products—seamlessly matching its comprehensive lineup of drilling equipment such as shale shakers, vacuum degassers, and jet mud mixers. With sophisticated structural design and reliable performance, the company’s horizontal agitator and drilling mud agitator solutions effectively guarantee mud quality, laying a solid foundation for safe and efficient drilling. This article elaborates on the key functions, operational characteristics, and practical application considerations of mud agitators in drilling operations.

Core Functions of Mud Agitator in Drilling Mud Systems

• Preventing Solid Particle Sedimentation: The primary function of mud agitator is to prevent solid cuttings and weighting agents (such as barite) in drilling mud from settling at the bottom of mud tanks. By driving the impeller to rotate at a stable speed, it generates strong fluid turbulence, keeping solid particles uniformly suspended in the mud. Tangshan Dachuan’s horizontal agitator features optimized impeller blades, which enhance the stirring range and intensity, effectively avoiding sediment accumulation that could block pipelines or affect mud performance.

• Ensuring Mud Homogeneity: During drilling, chemical additives (such as viscosifiers, thinners) are often added to adjust mud properties. drilling mud agitator fully mixes these additives with the base mud, ensuring uniform distribution of components and stable mud performance indicators (density, viscosity, shear force). This homogeneity is critical for maintaining consistent hydrostatic pressure in the wellbore and avoiding wellbore instability caused by local mud property deviations.

• Aiding Gas Removal from Mud: When gas invades the wellbore, part of the gas dissolves or disperses in the drilling mud.mud agitator stirs the mud to promote the release of small gas bubbles, making it easier for subsequent equipment (such as vacuum degassers, mud gas separators) to capture and remove the gas. The coordinated operation of horizontal agitator and degassing equipment significantly improves the overall gas removal efficiency of the mud system.

• Maintaining Stable Mud Temperature: In high-temperature drilling environments or during mud circulation, temperature differences may occur in the mud tank. drilling mud agitator promotes thermal convection through stirring, balancing the mud temperature in the tank. Stable temperature ensures that the mud’s chemical properties do not degrade due to local overheating or supercooling, extending the service life of the mud and related additives.

Performance Characteristics of Different Mud Agitator Types

Factors Affecting Mud Agitator Operational Efficiency

• Impeller Design and Speed: The impeller’s structure, blade angle, and rotation speed directly affect the stirring effect of mud agitator. A reasonable impeller design (such as curved blades) enhances fluid circulation, while appropriate speed balances stirring intensity and energy consumption. Tangshan Dachuan’s horizontal agitator adopts customized impeller designs based on mud tank size and mud properties, ensuring optimal stirring efficiency.

• Installation Position and Quantity: The installation position of drilling mud agitator should avoid stirring dead zones in the mud tank (such as corners and tank bottom edges). For large mud tanks, multiple agitators need to be arranged in a coordinated manner to ensure full coverage. Tangshan Dachuan’s technical team provides professional on-site guidance for agitator installation, determining the optimal quantity and layout based on the tank structure.

• Mud Properties: Mud viscosity, density, and solid content significantly impact agitator load and efficiency. High-viscosity, high-density mud requires mud agitator with higher torque output. Tangshan Dachuan’s agitators are equipped with high-performance motors and reducers, which can adapt to a wide range of mud property changes and maintain stable operation.

• Equipment Maintenance Status: Regular maintenance of horizontal agitator components (such as bearings, seals, and impellers) is essential for ensuring operational efficiency. Worn impellers reduce stirring intensity, while leaking seals cause mud intrusion and equipment damage. Tangshan Dachuan offers comprehensive after-sales maintenance services, including component inspection, replacement, and performance calibration.

Operational Guidelines for Mud Agitator in Drilling

• Pre-Operation Inspection: Before starting the mud agitator, conduct a comprehensive inspection—checking the motor, reducer, impeller, and connecting bolts for looseness or damage. Verify that the lubricating oil level is sufficient and that the seal is intact. For horizontal agitator, confirm that the installation is level and stable to avoid vibration during operation. Tangshan Dachuan provides detailed pre-operation checklists for operators to follow.

• Startup and Operation Sequence: Start the drilling mud agitator before mud enters the tank to ensure the tank bottom is free of sediment. After startup, observe the operation status (vibration, noise, current) and adjust the speed if necessary. During mud circulation, keep the agitator running continuously to maintain mud homogeneity. Avoid frequent startup and shutdown, which may damage the motor and reducer.

• Real-Time Monitoring During Operation: Continuously monitor the operational parameters of mud agitator, such as motor temperature, current, and stirring effect. If abnormal phenomena (such as excessive vibration, abnormal noise, or insufficient stirring) occur, stop the machine immediately for inspection and troubleshooting. Tangshan Dachuan’s advanced agitator models are equipped with real-time monitoring sensors, which send alerts for abnormal conditions.

• Post-Operation Maintenance: After drilling operations, clean the horizontal agitator thoroughly—removing residual mud and solid particles from the impeller and shaft. Conduct regular maintenance, including replacing lubricating oil, inspecting seals, and checking impeller wear. For long-term non-use, properly store the agitator to prevent corrosion and component damage. Tangshan Dachuan provides professional maintenance training and technical support for users.

Mud Agitator FAQs

What Is the Core Role of Mud Agitator in Drilling Mud Systems

The core role of mud agitator in drilling mud systems is to maintain mud homogeneity and prevent solid particle sedimentation. By generating fluid turbulence through impeller rotation, it keeps solid cuttings, weighting agents, and chemical additives uniformly suspended in the mud, ensuring stable mud performance (density, viscosity). Additionally, it aids in gas release from the mud and balances mud temperature, cooperating with other equipment (degassers, shale shakers) to ensure the normal operation of the entire mud treatment system.

Why Is Horizontal Agitator Widely Used in Drilling Operations

Horizontal agitator is widely used due to its outstanding operational advantages: 1) Large stirring radius, which can cover a wide area of the mud tank and avoid stirring dead zones; 2) Horizontal installation design, which ensures stable operation with low vibration and low noise; 3) Easy maintenance and replacement of components, reducing downtime; 4) Good compatibility with large mud tanks, which is suitable for large-scale drilling operations. Tangshan Dachuan’s horizontal agitator is further optimized for structure and performance, making it adaptable to diverse drilling environments.

How to Match Mud Agitator with Different Mud Tank Sizes

Matching mud agitator with mud tank sizes requires considering two key factors: 1) Stirring coverage: For small mud tanks (volume <50m³), one appropriately sized horizontal agitator is usually sufficient; for large tanks, multiple agitators need to be arranged in a staggered manner to ensure full coverage. 2) Agitator power: Larger tanks or higher-density mud require agitators with higher torque and power. Tangshan Dachuan’s technical team conducts on-site surveys to customize the optimal agitator model, quantity, and layout based on tank size and mud properties.

What Are the Common Faults of Mud Agitator and How to Troubleshoot

Common faults of drilling mud agitator include: 1) Excessive vibration: Caused by uneven impeller wear or incorrect installation; troubleshoot by checking and balancing the impeller, and re-adjusting the installation level. 2) Motor overload: Due to high mud viscosity or impeller blockage; resolve by reducing mud density, cleaning the impeller, or replacing a higher-torque motor. 3) Seal leakage: Resulting from seal wear; fix by replacing the seal and ensuring proper lubrication. Tangshan Dachuan provides 24/7 after-sales support to help users quickly troubleshoot and resolve faults.

How Does Mud Agitator Cooperate with Other Drilling Mud Equipment

Mud agitator operates in close coordination with other equipment to form a complete mud treatment system: 1) Cooperates with jet mud mixers: After the mixer prepares fresh mud, the agitator further stirs it to ensure uniform additive distribution; 2) Cooperates with vacuum degassers: The agitator stirs the mud to release dissolved gas, improving the degasser’s gas removal efficiency; 3) Cooperates with shale shakers: The agitator prevents solid particles separated by the shaker from settling again in the mud tank. Tangshan Dachuan’s integrated mud treatment system is designed to optimize the coordination between agitators and other equipment, maximizing overall operational efficiency.
