Shale Shaker Maintenance

Jun. 10, 2018

Various solid control equipment can be got from our factory. In this news, we will talk about the shale shaker maintenance, including Drilling Fluid Shale Shaker and Linear Motion Shale Shaker.

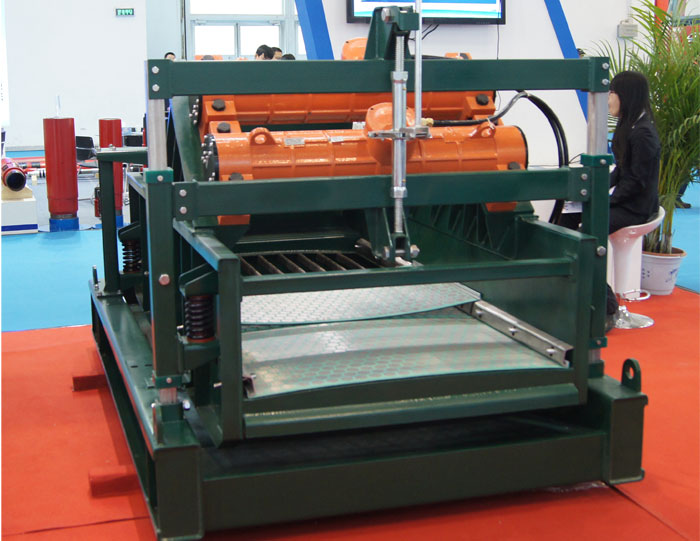

Drilling Fluid Shale Shaker

1. Check if the latch is in the same position on both sides of the screen box.

2. When using the tensioning screen, check whether the eight hammer blocks are locked. When using the composite hook screen, check whether the tightness of the tension nut is the same.

3. Whether the rubber strips and plastic sheets on the box are worn out and damaged, and should be replaced if necessary.

4. Check if the screen is warped and if necessary repair or replace it.

5. Check whether all the nuts, bolts and gaskets are loose, especially the nuts, bolts and gaskets on the motor and the fastening motor seat plate are reliable and reliable (one inspection per class), and there should be no loosening phenomenon.

6. Two vibrating screens are preferably used interchangeably, which will be beneficial to increase the life of bearings, screens and other components.

7. When the screen is stopped, rinse the screen in time with clean water and clean the drilling fluid on the screen and the sand particles embedded in the mesh with a brush.

8, In use. Drilling fluid paste network phenomenon occurs, should be promptly stopped for screening.

9. Monitor whether there is abnormal sound, especially the collision sound between bearing or metal.

10. Lubricate each bearing on the motor once every two months of operation (operating 1400H).

Further information about Drilling Fluid Shale Shaker and Linear Motion Shale Shaker, pls leave message on our website.
