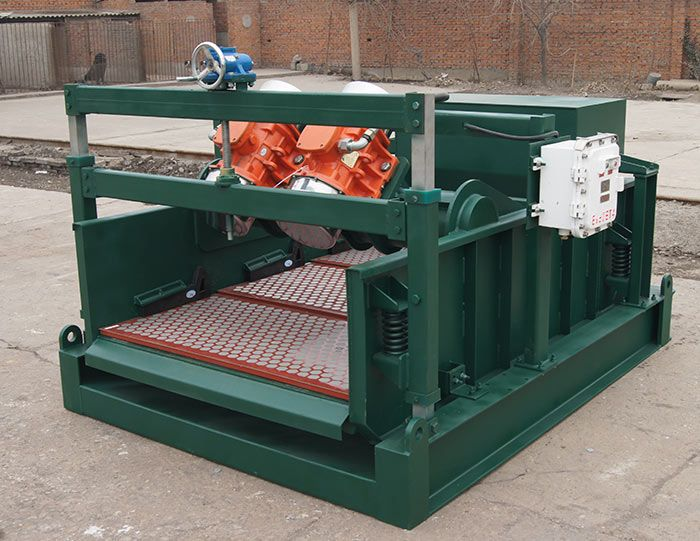

The Advantage of the Hydraulic Shale Shaker in Heavy Mud Conditions

In the high-stakes environment of deep-well drilling and unconventional gas exploration, the density and viscosity of the drilling fluid—often referred to as "heavy mud"—pose a significant challenge to standard solids control equipment. As mud weight increases to counter high formation pressures, the internal friction and surface tension of the fluid make traditional mechanical separation less efficient. To address this, the hydraulic shale shaker has emerged as a premium solution. By utilizing hydraulic power instead of traditional electric vibrators, this specialized drilling shale shaker provides the torque, reliability, and precision required to maintain fluid integrity under the most grueling conditions of 2026.

Mastering High-Density Fluids with the Hydraulic Shale Shaker

The primary advantage of the hydraulic shale shaker lies in its drive system. Traditional shakers rely on electric motors to generate vibration, which can be prone to overheating or electrical failure in the high-ambient-temperature, high-vibration environments of a drilling rig. In contrast, a hydraulic system uses pressurized fluid to drive the vibrating assembly. This allows for infinitely variable speed control and a significantly higher torque-to-weight ratio.

In heavy mud conditions, the fluid is often loaded with weighting agents like barite, which increases its resistance to flow. A hydraulic shale shaker can maintain its vibration frequency and amplitude regardless of the "mud load" on the screen deck. While electric motors might bog down under the weight of a thick, heavy slurry, the hydraulic drive provides consistent, relentless energy. This ensures that the mud is effectively sheared, allowing the liquid phase to pass through the screens while the heavy solids are conveyed away, fulfilling the most demanding requirements of the modern oilfield.

Enhancing Separation Efficiency: The Primary Shale Shaker Function

To appreciate the hydraulic model, one must understand the core shale shaker function within the solids control circuit. The shaker's job is to act as a mechanical filter that preserves the chemical properties of the mud. When dealing with heavy mud, the "pool" of fluid on the shaker deck becomes much more difficult to manage. If the vibration is insufficient, the mud will simply "carpet" the screen, leading to a total loss of expensive fluid over the discharge end.

The shale shaker function in a hydraulic unit is enhanced by the ability to adjust the vibration pattern and G-force in real-time without stopping the machine. This "on-the-fly" tunability allows the derrickhand to respond to changes in mud rheology or cuttings volume instantly. By optimizing the motion—whether it be linear or a specialized elliptical path—the hydraulic system ensures that the heavy mud is spread evenly across the screen surface, maximizing the available filtration area and ensuring that every drop of base fluid is recovered for recirculation.

Achieving Peak Performance with the High G Shale Shaker

In the unremitting pursuit of drier cuttings and cleaner mud, G-force is the ultimate performance metric. A high g shale shaker is defined by its ability to apply forces that exceed 7.5G, often reaching up to 8.0G or higher. Hydraulic systems are uniquely suited to achieving these levels because they do not suffer from the mechanical fatigue and heat buildup that limit electric vibrators.

The high G-force generated by a hydraulic shale shaker is essential for breaking the powerful bond between high-density drilling fluids and the rock cuttings. In heavy mud, the fluid's "clinging" force is much stronger; a standard vibration simply won't suffice to separate the liquid from the solid. The intense energy of a high g shale shaker effectively "slings" the fluid off the solids, resulting in significantly drier waste and a higher rate of fluid recovery. This is particularly critical in offshore operations or environmentally sensitive land sites where the cost of waste disposal is directly tied to the volume and moisture content of the cuttings.

Durability and Safety of the Hydraulic Drilling Shale Shaker

Beyond performance, the drilling shale shaker powered by hydraulics offers significant safety and maintenance advantages. Electric motors in a "Zone 0" or "Zone 1" hazardous area require complex explosion-proof enclosures and rigorous electrical inspections. Because the hydraulic power unit (HPU) can be located away from the shaker itself, the shaker basket can be lighter and the risk of electrical sparking is entirely eliminated.

This separation of the power source from the vibration deck also simplifies shale shaker function maintenance. The hydraulic motors are compact and sealed, making them virtually immune to the corrosive effects of salt spray or chemical-laden mud. In the harsh environments of 2026, where downtime can cost thousands of dollars per hour, the rugged nature of the hydraulic shale shaker provides a level of operational security that is hard to match with traditional electrical systems. The unremitting pursuit of uptime is supported by a system that has fewer moving electrical parts and a much higher tolerance for continuous high-load operation.
